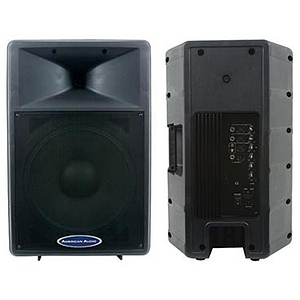

American Audio DLS-15P 15" 2-Way Powered Speaker

The DLS 15P by American Audio is a is a 300 watt self powered, two-way loudspeaker system encased in a light weight polyurethane enclosure. This speaker has been designed to be used as both a portable and a permanently installed unit. The speaker includes a poll mount slot and rubber feet on the bottom of the unit for portable applications and also includes rigging points on the top, bottom, and rear of the unit for permanent and flight installations.

Features:

• Heavy Duty Polypropylene Cabinet
• Built in XLR & 1/4” Mic and Line Level Inputs
• XLR and RCA Balanced Inputs
• Built-in Rigging Points
• 1/4” and XLR Line Outputs
• Built-in Pole Mount Socket
• Bass and Treble Tone Controls
• Clip and Power LEDs
• 300 Watts RMS - 1000 Watts Peak Power
• Built-in Heavy Duty Carrying Handle
• Attached heavy Duty Rubber Feet

Speaker Specifications:

• Dimensions: 13.58" x 16.53" x 26.37"; 344mm x 419mm x 669mm
• Weight: 61 Lbs. / 28 kgs
• Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)
• Operational humidity: 25 to 85% RH (non-condensation)
• Storage temperature: -20 to 60˚C (4 to 140˚F)
• Frequency Response: 40KHz - 20KHz (-3dB)
• Crossover: 3,500 HZ
• Nominal Dispersion: 90˚ x 50˚ (HXV)

Amplifier Specifications

• Power supply: AC 115v/230v, 50/60Hz
• Power consumption: 12 Watts Typical
• Accessories: I.E.C. Power Cord, 2 Floor Monitor Brackets
• Input Sensitivity (Note; Level/Impedance: 0dBV = 1V RMS)
  Line:10K ohms input impedance; 70mV RMS Sensitivity for 0dBm Output;
  Microphone:10K Ohms input Impedance Unbalanced; 1.0mV RMS Sensitivity for 0dBm Output; 500mV RMS Max Input, Output Sensitivity
• Output Sensitivity: 109 dB/m/w
• Master Output: 9V RMS Maximum
• Frequency Response:
  Line: 20Hz-22KHz +/-0.5dB
  Microphone: 20Hz-15KHz +/-0.5dB
• Signal to Noise Ratio (Maximum Output):
  Line: Better than 94dB
  Microphone: Better than 76dB
• THD - Total Harmonic Distortion:
  Master Output: Less than 0.1%
• Channel Equalizer:
  Bass: +15dB/-30dB @ 100Hz
  Treble: +15dB/-30dB @ 12KHz
