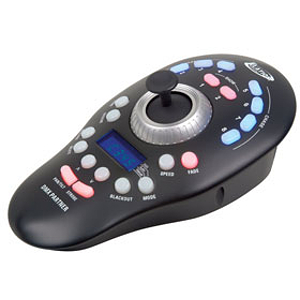

American DJ DMX-PARTNER 96CH DMX Controller/Recorder

American DJ DMX-PARTNER DMX Controller/Recorder

This unit is a professional DMX recorder and playback device with high performance and advanced capabilities. This device was designed to accept information from any universal DMX controller availible on the market today. Any group of scenes that have been programmed into a universal DMX controller can simply be downloaded into the DMX Partner for easy playback. In many cases, the DMX Partner is pre-programmed at the factory when sold in system packages. This unit is made up of two control sections - one part for effect lighting and the other for playback of dimmers and moving lights. The two parts run completely independent of one another allowing you more flexibility when playing back chases and shows or turning effects on and off.

Features and Specifications

• 96 channel DMX hand-held recorder/playback unit
• 8 chases (up to 99 steps each)
• 2 shows (up to 99 steps each with separate speed and fade time adjustment)
• 3 operational modes: DMX, Audio or Manual
• Playback chases and shows in sequence mode (One chase at a time)
• Playback chases and shows in mixed mode - (All 8 chases + 2 shows can playback at one time) - incorporates HTP Principle (Highest Takes Precedence)
• Includes XLR In, XLR Out and RS-232 connections
• Transfer data between any universal DMX Controller and DMX Partner via DMX In/Out connections
• Transfer data from one DMX Partner to another via RS-232
• Transfer data to and from the DMX Partner and a personal computer via RS-232 using Elations proprietary RS-232 software (available at www.elationlighting.com)
• Assignable joystick for Pan and Tilt control
• Programmable Strobe function
• Password protected record feature
• Blackout control
• 4-character LED display
• 21-back lit buttons
• Includes power supply (DC 12V, 300mA)
• Dimensions (LxWxH): 7.75” x 4.5” x 3” / 198x112x75 mm
• Weight: 1.5 lbs. / 0.7 kg.
