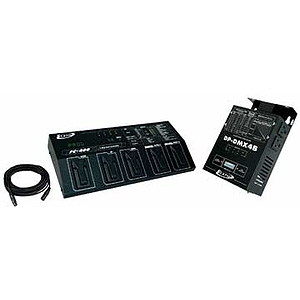

American DJ FC-400 SYSTEM Foot Controller/Dimmer System

The FC-400 System by American DJ includes:

- 1 FC-400
- 1 DP-415
- 1 MC-25 cable

FC-400 4 WAY FOOT CONTROLLER

• 4 DMX channels
• 20 built-in programs with Auto or Music mode
• The chase of programs of fade in or out within 0-60 seconds
• 20 built in Chases.
• Programmable Flash, Full-On, Black Out, Chase Speed, Fade Time (0-60 sec.).
• Big & Bright LCD displays selected Chases and Scenes.
• Four LED’s display channel activity.
• One 3 pin DMX XLR output.
• Midi output.
• Audio input for music sync functions.
• Use in conjunction with the Elation; DP-DMX20L, CYBER PAK, UNI PAK, DP-DMX4B or DP-640.
• Full-On function for 100% momentary output to all 4 channels.
• Stand By function with indicator LED.
• Power Input: 120V ~ 60Hz.
• Maximum Load: 5A per channel / 16A total.
• Dimensions: 2.5”L x 17.25”W x 7.5”H.
• Weight: 8 lbs.

DP-415

The Elation DP-415 is a versatile 4-channel dimmer pack that also doubles as a switch pack. This compact unit features eight, 3-prong Edison sockets (2 for each channel) controlling up to 8 fixtures. The built-in hanging bracket is reversible to hang on truss or can be used with a clamp.

• Compact 4-Channel DMX Dimmer.
• 2x 3-pong Edison plugs per channel (8 total plugs).
• On/Off power switch.
• XLR In/Out.
• 10-position dip switch settings to address DMX.
• Assign as a dimmer pack or switch pack.
• Changeable hanging bracket to hang on truss.
• LED "On"indications.
• Max Power: 15A Total, 5A per channel.
• Dimensions (LxWxH): 7" x 7" x 2.5" / 180x177x64mm.
• Weight: 3 lbs./1.2 kgs.

MC-25

Female XLR to Male XLR, 25 foot microphone cable
