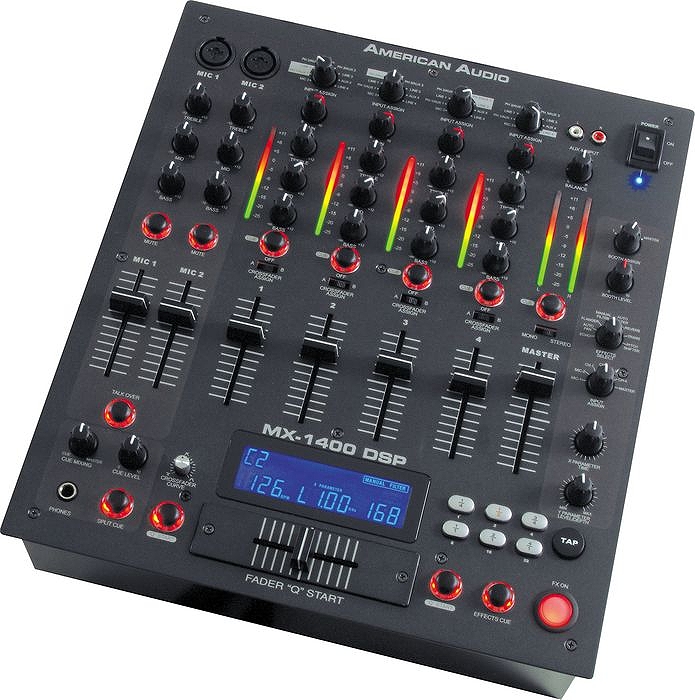

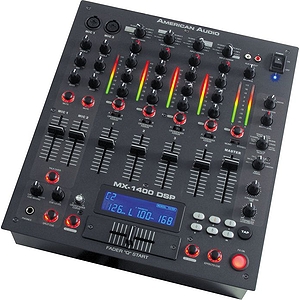

American Audio MX-1400 DSP 4 Channel Mixer with DSP

The MX-1400 DSP DJ Mixer by American Audio is the ultimate mixing deck. This 14" rave/club mixer features 4 channels and DSP (Digital Signal Processing) effects assignable to any channel including the mics! You can tweak-out your vocals or music from any source (CD/MP3/vinyl). Fine-tune the effects with the built-in Parameter Time and Depth adjustment knobs plus the TAP and Beat Ratio buttons. The large blue LCD display shows the built-in BPM Analyser, what effects are being used, and the fine-tuning of the Parameter Time and Depth adjustment.

On the MX-1400 DSP mixer's recessed rear panel you'll find a master trim output (or master volume output); XLR outputs; and a digital (S/PDIF) output to record your gig or favorite mix. There is also a second set of XLR outputs for booth monitoring-just plug directly into a set of powered speakers and your set.

The MX-1400 DSP DJ mixer has a convenient auxiliary RCA input on the face of the mixer for those last minute hardware add-ons. American Audio's MX-1400 DSP is a solid mixer from the inside out with superior mic circuitry and long-lasting line faders and cross fader.

Features and Specifications:

• 4-channel, 14-inch professional mixer
• 3 Phono, 4 Lines, 4 Aux, 3 Mics (assign to any channel)
• FX with Digital Signal Processing (DSP): Echo, Auto Pan, Flanger, Reverb, Manual Filter, Auto Filter, Trans, & Pitch Shifter
• Assign FX to any mic or channel input
• Parameter time and depth adjustment
• Master and cue BPM analyzer
• Master trim output adjustment on rear
• Microphone attenuator on rear panel
• Balanced XLR outputs
• Booth output (XLR) with Assign and Volume
• Crossfader assign on each channel
• Crossfader curve
• Treble, Mid, Bass, Mute and Talkover for each channel
• Master Volume with Balance (Left/Right) and Mono/Stereo control
• Convenient auxiliary RCA input on face of mixer
• Stream Flow LED indicators for each channel and master channel
• Superior mic circuitry and longer lasting line faders
• Q-Start
• Recessed back panel
• Digital output (S/PDIF)
• Multi-voltage switch
• Dimensions (LxWxH): 14" x 12.6" x 4.25"; 357 x 320 x 106 mm
• Weight: 14 lbs. / 6.3 kg
