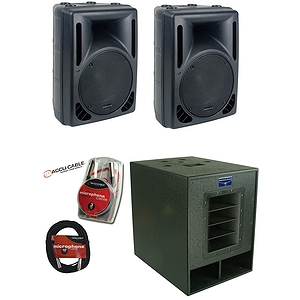

American Audio PRO FORMER 1015 Powered Speaker/Subwoofer System

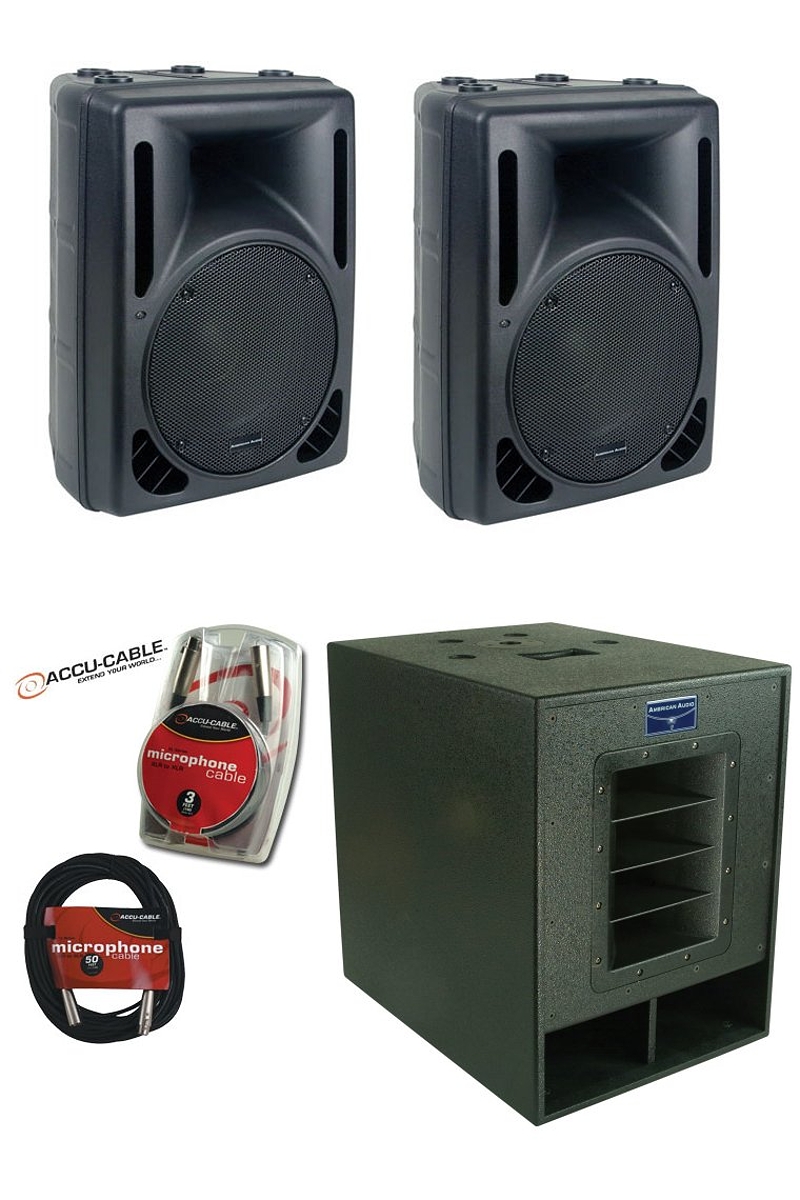

The Pro Former 1015 by American Audio is a Speaker/Subwoofer system that includes:

- 2 PXI 10P Speakers
- 1 PXW 15P Subwoofer
- 2 XL-25 Cables

The PXI 10P is a 200 watt self powered, two-way active loudspeaker encased in a light weight ASB Nylon Fiber cabinet. This speaker has been designed to be used as both a portable and a permanently installed unit. The speaker includes a poll mount slot and rubber feet on the bottom of the unit for portable applications and also includes rigging points on the top, bottom, and rear of the unit for permanent and flight installations.

• High-Powered 10-inch, 2-way speaker
• Built-in 200w high-powered bi-amplifier system
• 10" woofer with 40oz magnet
• 1" compression driver
• Electronic crossover
• ABS nylon fiber cabinet with handle
• XLR & RCA line inputs
• Two microphone inputs (XLR & 1/4" stereo) with separate microphone volume control
• Sensitivity: 94 ± 2dB/m/w
• Frequency response: 50-17KHz (-10db)
• Treble, bass and volume output control
• Trapezoidal design
• Flyable & stand mountable
• Blue LED "On Indicator" on front of unit

The PXW 15P is a 15" powered subwoofer gives you a solid lift in the bass area with balanced XLR I/O jacks as well as a high pass XLR ouput. The back panel features LED indicators for limit, signal, protect, and power. The protect indicator will glow when the subwoofer is getting too hot.

• 5" Powered subwoofer
• Attached wheels on the subwoofer
• Limit Indicator lets you know when built-in limiter is active
• Signal Indicator glows when when there a signal is received to the Full Range input
• Subwoofer gain control knob regulates the output level of the subwoofer, and set balance between the speakers and subwoofers.
• Protect Indicator glows when the subwoofer goes into protect mode which prevents the subwoofer amplifiers from getting too hot and stops all output
• Power LED indicates power is on
• Phase switch for reversing polarity of subwoofer
• Full range XLR input
• High Pass XLR output
• Thru full range output
• Built-in pole mount socket
• Built-in carrying handles
• Frequency response: (-3db): 45Hz ~ 120Hz
• Frequency range: (-10db): 35Hz ~ 120Hz
• Maximum SPL at 1m: 126db
• Peak output at 1m: 129db
• Crossover frequency: 120Hz (12db/octave)
• Input type: balanced differential
• Input impedence: 50k
• Input protection: Level protected
• Thermal protection: Input stage muting, auto-reset
• Low-Frequency transducer diameter: 15"
• Voice coil diameter: 4"
• Low-Frequency Power Amplifier: Rated Power 500W continuous, 700W peak
• Rated THD: < 0.03%

The XL-25 is a 25-Foot XLR Cable
