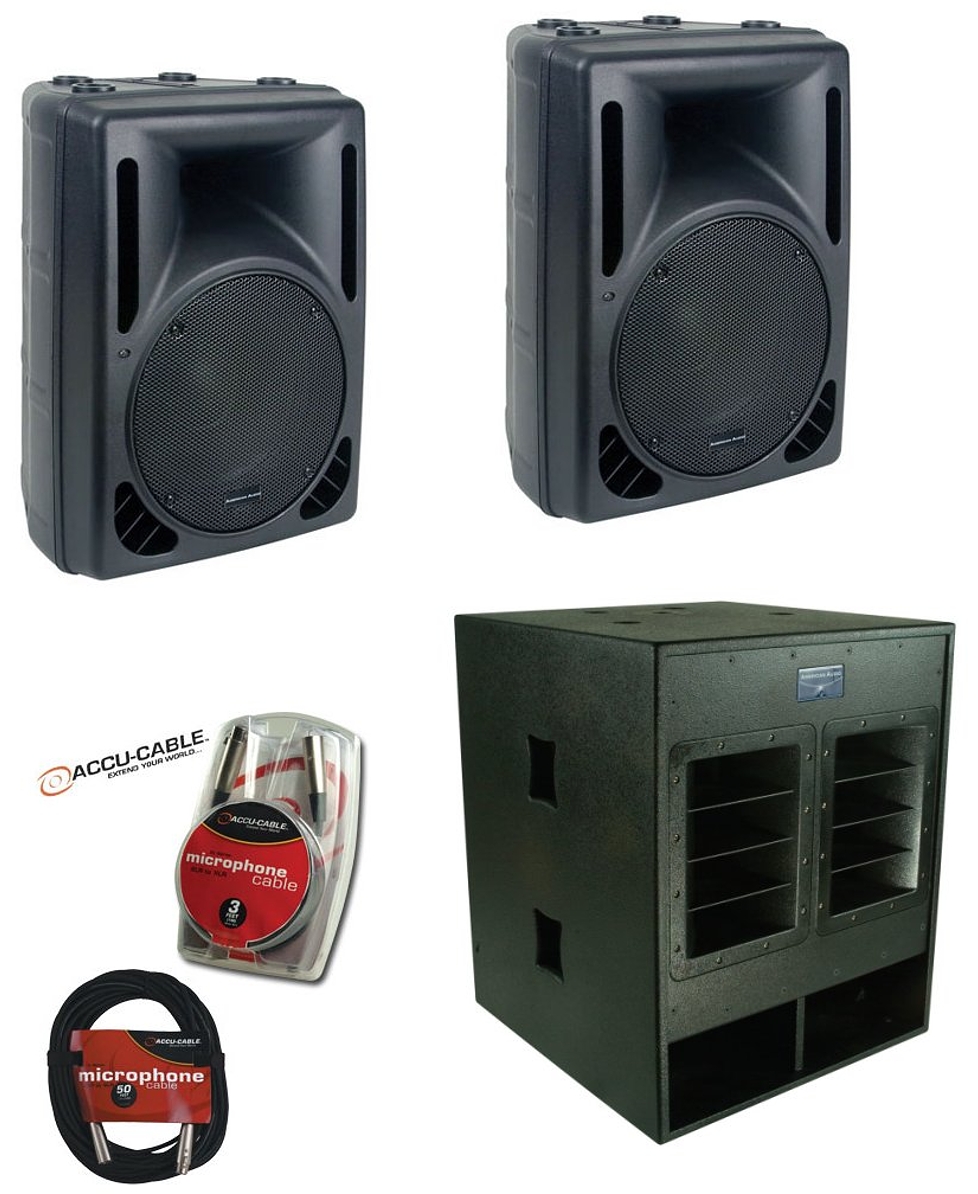

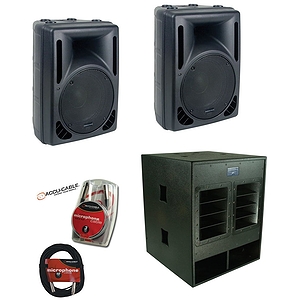

American Audio PRO FORMER 1018 Powered Speaker/Subwoofer System

The Pro Former 1018 by American Audio is a Speaker/Subwoofer system that includes:

- 2 PXI 10P Speakers
- 1 PXW 18P Subwoofer
- 2 XL-25 Cables

The PXI 10P is a 200 watt self powered, two-way active loudspeaker encased in a light weight ASB Nylon Fiber cabinet. This speaker has been designed to be used as both a portable and a permanently installed unit. The speaker includes a poll mount slot and rubber feet on the bottom of the unit for portable applications and also includes rigging points on the top, bottom, and rear of the unit for permanent and flight installations.

• High-Powered 10-inch, 2-way speaker
• Built-in 200w high-powered bi-amplifier system
• 10" woofer with 40oz magnet
• 1" compression driver
• Electronic crossover
• ABS nylon fiber cabinet with handle
• XLR & RCA line inputs
• Two microphone inputs (XLR & 1/4" stereo) with separate microphone volume control
• Sensitivity: 94 ± 2dB/m/w
• Frequency response: 50-17KHz (-10db)
• Treble, bass and volume output control
• Trapezoidal design
• Flyable & stand mountable
• Blue LED "On Indicator" on front of unit

The PXW 18P is an 18" powered subwoofer that will provide plenty of boom. It gives you balanced in and out XLR jacks, as well as a thru full range output, gain control, LED indicators, a phase switch for switching polarity and a protect mode that will prevent the subwoofer from getting too hot by stopping all output.

• Limit Indicator lets you know when built-in limiter is active
• Signal Indicator glows when when there a signal is received to the Full Range input
• Subwoofer gain control knob regulates the output level of the subwoofer, and set balance between the speakers and subwoofers.
• Protect Indicator glows when the subwoofer goes into protect mode which prevents the subwoofer amplifiers from getting too hot and stops all output
• Power LED indicates power is on
• Phase switch for reversing polarity of subwoofer
• Full range XLR input
• High Pass XLR output
• Thru full range output
• Frequency response: (-3db): 35Hz ~ 120Hz
• Frequency range: (-10db): 25Hz ~ 120Hz
• Maximum SPL at 1m: 128db
• Peak output at 1m: 134db
• Crossover frequency: 120Hz (12db/octave)
• Input type: balanced differential
• Input impedance: 50k
• Input protection: Level protected
• Thermal protection: Input stage muting, auto-reset
• Low-Frequency transducer diameter: 18"
• Voice coil diameter: 4.0"
• Low-Frequency power amplifier: Rated Power 800 Watts Continuous, 1000W Peak
• Rated THD: < 0.03%

The XL-25 is a 25-Foot XLR Cable
