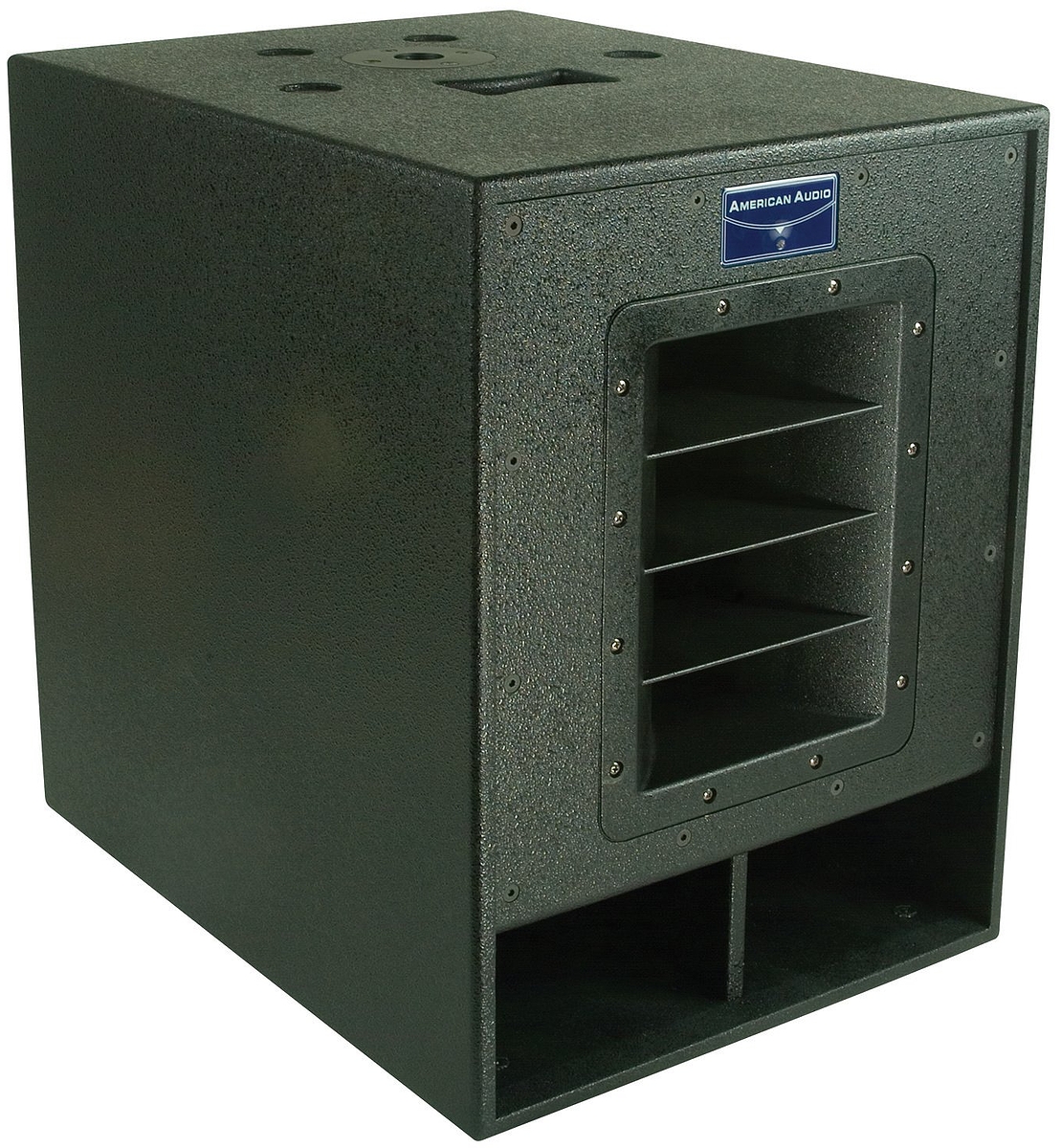

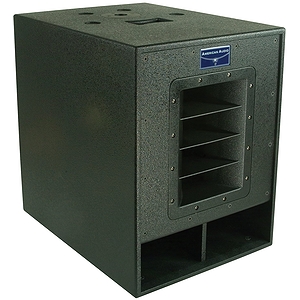

American Audio PXW15P 15" Powered Subwoofer

PXW 15P

Some situations call for a little extra umph from the lower side of the scale. That's when a PXW 15P subwoofer is a perfect call. This 15" powered subwoofer by American Audio gives you a solid lift in the bass area with balanced XLR I/O jacks as well as a high pass XLR ouput. The back panel features LED indicators for limit, signal, protect, and power. The protect indicator will glow when the subwoofer is getting too hot.

Features:

• 5" Powered subwoofer
• Attached wheels on the subwoofer
• Limit Indicator lets you know when built-in limiter is active
• Signal Indicator glows when when there a signal is received to the Full Range input
• Subwoofer gain control knob regulates the output level of the subwoofer, and set balance between the speakers and subwoofers.
• Protect Indicator glows when the subwoofer goes into protect mode which prevents the subwoofer amplifiers from getting too hot and stops all output
• Power LED indicates power is on
• Phase switch for reversing polarity of subwoofer
• Full range XLR input
• High Pass XLR output
• Thru full range output
• Built-in pole mount socket
• Built-in carrying handles

Specifications:

• Component: 15" Woofer (4 Ohm)
• Environmental conditions: Operational temperature: 5° to 35°C (41° to 95°F)
• Operational humidity: 25 to 85% RH (non-condensation)
• Storage temperature: -20° to 60°C (4° to 140°F)
• Frequency response: (-3db): 45Hz ~ 120Hz
• Frequency range: (-10db): 35Hz ~ 120Hz
• Maximum SPL at 1m: 126db
• Peak output at 1m: 129db
• Crossover frequency: 120Hz (12db/octave)
• Input type: balanced differential
• Input impedence: 50k
• Input protection: Level protected
• Thermal protection: Input stage muting, auto-reset
• Low-Frequency transducer diameter: 15"
• Voice coil diameter: 4"
• Low-Frequency Power Amplifier: Rated Power 500W continuous, 700W peak
• Rated THD: < 0.03%
• Cooling: Passive-Heatsink with speed sensitive electric fan
• Dimensions: 27”x21”x27”
• Weight: 130 Lbs.
