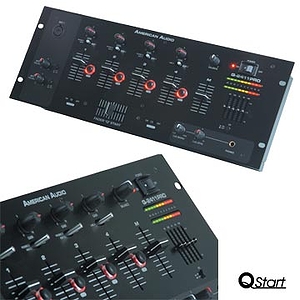

American Audio Q-2411 PRO 4 Channel Mixer

The Q-2411 PRO by American Audio is a 4-channel rackmountable professional DJ mixer featuring a high-quality Feather Fader for smooth, clean crossfades; Fader Q start; 5-band EQ; 3 phono, 5 line, 3 aux, and 2 mic inputs; and balanced XLR outputs. Then it adds Stream Flow LED indicators on each channel and separate volume for each microphone.

Features:

• Feather Fader Plus for Q-Start Control
• 3 Phono, 5 Line, 3 Auxiliaries & 2 Mic Inputs
• 5 Band EQ for Master Output
• High quality Feather Fader for smooth, clean cross fades (replaceable)
• 2 Independent Microphones with Separate EQ with combo connection (1/4"/XLR) -
• Cue mixing
• Left & right turntable ground connectors conveniently located at each end of the rear panel
• On/Off switch for channel assign
• Gain control for each channel
• Q-Start Compatible (for use with American Audio CD Players with Fader “Q” Start)
• 1 year limited manufacturer's warranty
• Master Level Indicator
• Stream Flow LED indicators on each Ch.
• Balanced XLR Output
• High level headphone output
• Pre Fader Levels (PFL) for each channel

Specifications:

• POWER SUPPLY: AC 115v~60Hz/230v~50Hz, User Selectable; Single Voltage - AC 120V, 60Hz (U.S.A. and Canada)
• Crossfader: Feather Fader Plus - VCA detecting fader start control - Low grounding impedance crossfader
• Power Consumption: 12W typical, 20W w/ full headphone output
• Headphone Impedance: 16 Ohms
• Operating Temperature: 5 to 35 deg. C; Humidity: 25 to 85% RH (non-condensing); Storage Temperature: -20 to 60 deg. C
• Dimensions: 19" (W) x 6.96" (D) x 3.8" (H); 482.6mm (W) x 177mm (D) x 97mm (H)
• Weight: 6.6 Lbs. / 3.0Kgs.
