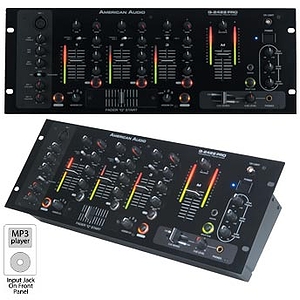

American Audio Q2422-PRO Professional Rack Preamp Mixer

American Audio Q2422-PRO Professional Rack Preamp Mixer

Item #: DJ.Q2422-PRO

List Price: $299.95
Our Price:
$199.99 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by American Audio

Professional Rack Preamp Mixer. Made by American Audio. (DJ.Q2422-PRO)

Free Shipping on this item, and most items in same order also ship free

Temporarily Out of Stock -- Notify Me when Back in Stock

Found in:  DJ Mixers

Goes With -- Check a box to also include that item in cart

The Q-2422 PRO by American DJ is a 3-channel rackmountable professional DJ mixer loaded with pro features from top to bottom. These include a high-quality Feather Fader for smooth, clean crossfades; Fader Q start; 3-band EQ on all 3 channels; 10 inputs; and balanced XLR outputs. Then it adds Stream Flow LED indicators on each channel, an easy access auxiliary input on front of the mixer to plug in MP3 players or satellite radio receivers, and independent pan & gain on each channel. It has 2 zone outputs and trim output adjustment on the rear. Improved mic circuitry, longer lasting line faders, and volume, treble, and bass controls for each of its 2 mic inputs are additional refinements.


  • Equipped with high quality Crossfader (Replaceable)
  • High Power Headphone Output
  • Selectable Voltage 115v~230v
  • 3 Channel Mixer
  • 2 Phono, 4 Line, 3 Auxiliary Inputs
  • 2 Microphone Input - (1) XLR/ 1/4" combo plug, (1) 1/4" Input Jacks
  • Volume Control for each Mic
  • Master Balance Control
  • 12v BNC Light Connector for Gooseneck Light
  • Fader "Q" Start
  • On/Off Button Controls Fader "Q" Start Function (for use with the American Audio CD Players with Fader "Q" Start)
  • Rotary Kills for Treble, Bass & Mids on all three channels
  • Individual Channel Gain Control
  • Convenient "L" Shape Design
  • Extremely clean signal to noise ratio
  • Talkover switch- Reduces channel output gain by 14dB +/- 2 dB
  • Independent Zone Level Output
  • Stereo LED Level Indicator
  • Split Cue Monitoring
  • Cue Mixing
  • Balanced XLR Master Output
  • 4 Signal Output Options - Master (RCA and Balanced XLR), Zone (RCA) and REC (RCA)

  • Power Supply: AC 115v~60Hz/230v~50Hz, User Selectable; AC 120V, 60Hz (U.S.A. and Canada)
  • Crossfader: Feather Fader Plus Low grounding impedance crossfader
  • Power Consumption: 16W typical, 29W w/ full headphone output
  • Operating Temperature 5 to 35 deg. C; Humidity: 25 to 85% RH (non-condensing)
  • Storage Temperature: -20 to 60 deg. C
  • Dimensions: 19" (W) x 6.96" (D) x 4.31" (H); 482.6mm (W) x 177mm (D) x 109.6mm (H)
  • Weight: 7.49 Lbs. / 3.4Kgs.
