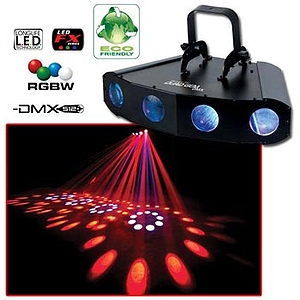

American DJ QUAD GEM DMX 4-Way LED Moonflower Effect

The Quad Gem DMX is a DMX intelligent LED Moonflower Effect. When using DMX mode you can choose between a four channel mode and a 10 channel mode. The fixture can operate in three different operating modes; stand alone, sound-active, or in a Master/Slave configuration. The Quad Gem DMX comes with several built in programs.

Using LED Technology and a special glass optical system the American DJ Quad Gem DMX produces sharp red, green, blue and white beams of light - a spectacular light show that could not be produced with traditional halogen Moonflowers.

Features:

• 224 LEDs (80 Red, 60 Green, 48 Blue & 36 White LEDs)
• Output similar to quad 250W Halogen lamps (based on visual side-by-side comparison with halogen fixture)
• Produces LED patterns that can be projected on a dance floor or wall
• DMX-512 protocol
• 4 or 7 DMX Channel modes
• 3 operational modes: Sound active with built-in programs; DMX Controller or UC3 Universal Controller
• Electronic dimming: 0 - 100%
• Fast to slow Strobe
• Wide beam spread covers a large area
• Sound active from built-in programs
• High output with new lens technology
• Very low power consumption
• Extreme long lifetime of the LEDs (100,000 hr. rating) Internal Microphone
• Digital Display for Address and Function Setting
• 12 Sound Active Shows

• Voltage*: 120v/60Hz or 230v/50Hz
• Power Consumption: 34W
• Fuse: 1A (120v & 230v)
• Duty Cycle: None
• Sound Active: Yes
• Working Position: Any Safe, Secure Position
• Dimensions: 19.3"(L) x 11.9"(W) x 6.49"(H) 491mm x 304mm x 165mm
• Weight: 11 Lbs. / 5 kgs.
• Warranty: 3 Year (1095 days)
