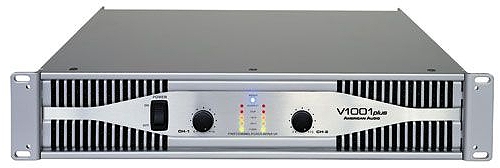

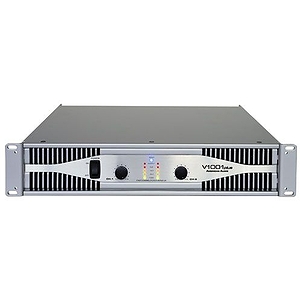

| Pro DJ Power Amp. Made by American Audio. (DJ.V1001)
The American Audio V1001 Plus amplifier is a rugged amp that puts out 210 watts per channel @ 8 Ohm's. It only takes up 2 rack spaces, so it will be able to fit in many DJ cases. Specifications: - Output Power:
- 2 ohms, 1 khz 1% THD 450W RMS per channel
- 4 ohms, 1 khz 1% THD 350W RMS per channel
- 8 ohms, 1 khz 1% THD 230W RMS per channel (Bridged Mode, mono)
- 4 ohms, 1 khz 1% THD 890W RMS per channel
- 8 ohms, 1 khz 1% THD 700W RMS per channel
- Total Harmonic Distortion (THD): Less than 0.1% (20Hz-20kHz, @ 8 Ohms)
- Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 4 Ohms)
- Dimensions: (H) 3.5" x (W) 19" x (D) 15.9"; 88 (cm) x 48.3 (cm) 40.5 (cm)
- Weight: 26.4 lbs (12 kg)
- Frequency Response:
- ±.5dB, 1W RMS 8 ohms (10Hz - 28 kHz)
- ±3dB, 1W RMS 8 ohms (5Hz - 80 kHz)
- Hum & Noise: 100 dB, unweighted (@ 8 Ohms)
- Signal to Noise Ratio: 104 dB , unweighted (@ 4 ohms full power) “A” Weighted
- Slew Rate: 90v/usec
- Damping Factor: 240 (@ 8 Ohms)
- Protection Circuit:
- DC output protection, Overload protection
- Short circuit protection, On & Off protection
- Special Features: Front panel reset
- Power Consumption: 5A @ 120V AC (@ 8 Ohms)
- Turn-On Thump Protection: Yes
- Cooling System: Dual 1 speed fans & heatsink
