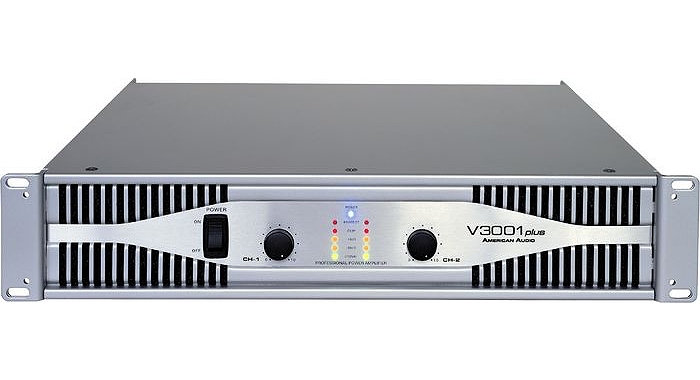

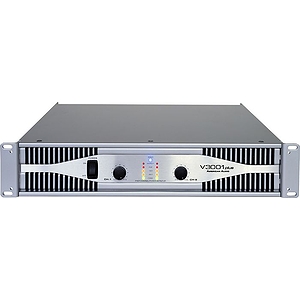

American Audio V3001 Plus DJ Power Amp (2050W Max)

V3001 Plus

Offering DJs and pro audio installers increased power and more features for their dollar, American Audio's exciting V3001 Plus power amp replaces the older V3000 plus. The rackmountable V3001 Plus is no slouch, boasting peak power ratings of 2,050W. In addition to significantly improved power handling, the V3001 Plus, is built with better safety circuits as well. Equipped with protection circuitries for DC output, overload, short circuits, on/off, and turn-on thump, it is virtually fry-proof and greatly reduces the risk of electric shock to sound reinforcement engineers, DJs, and onstage performers.

It boasts signs of higher intelligence as well: American Audio has designed it to include a rear-panel contractor smart switch that disables the front-panel knobs once they've been set to their proper levels. When the switch is engaged, front-panel amp volume knobs are disabled, providing further protection against system feedback and speaker overload. The V3001 Plus power amp also features a recessed rear panel that makes it easier to plug in connecting cables when the amp is installed on a rack.

Features:

• 2,050W power rating
• Sub Woofer Crossover
• Contractor Smart Feature (Switch on rear panel to disable front volume controls)
• Dual 2-speed fan cooling
• Comprehensive protection circuitry

Specifications:

• Output Power:
  • 2 ohms, 1 khz 1% THD 1020W RMS per channel
  • 4 ohms, 1 khz 1% THD 670W RMS per channel
  • 8 ohms, 1 khz 1% THD 410W RMS per channel (Bridged Mode, mono)
  • 4 ohms, 1 khz 1% THD 2050W RMS per channel
  • 8 ohms, 1 khz 1% THD 1360W RMS per channel
• Total Harmonic Distortion (THD): Less than 0.1% (20Hz-20kHz, @ 8 Ohms)
• Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 4 Ohms)
• Dimensions: (H) 3.5" (W) 19" (D) 15.9"; 88cm x 48.3cm x 40.5cm
• Weight: 31 lbs; 14 kg
• Frequency Response:
  • +/- .5dB, 1W RMS 8 ohms (10Hz - 40 kHz)
  • +/- 3dB, 1W RMS 8 ohms (20Hz - 20 kHz)
• Hum & Noise: 100 dB, unweighted (@ 8 Ohms)
• Signal to Noise Ratio: 60 dB , unweighted (@ 4 ohms full power) "A" Weighted
• Slew Rate: 25v/usec
• Damping Factor: 400 (@ 8 Ohms)
• Protection Circuit:
  • DC output protection, Overload protection
  • Short circuit protection, On & Off protection
• Special Features:
  • Sub Woofer Crossover
  • Contractor Smart™ Feature (Switch on rear panel to disable front volume controls)
• Power Consumption: 10A @ 120V AC (@ 8 Ohms)
• Turn-On Thump Protection: Yes
• Cooling System: Dual 2 speed fans & heatsink
