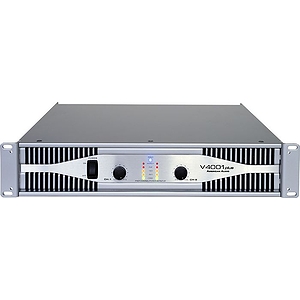

American Audio V4001 Pro DJ Power Amp (3000W Max)
Rollover image for closeup

American Audio V4001 Pro DJ Power Amp (3000W Max)

Item #: DJ.V4001

List Price: $1099.95
Our Price:
$799.99 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by American Audio

Pro DJ Power Amp. Made by American Audio. (DJ.V4001)

Free Shipping on this item, and most items in same order also ship free

Temporarily Out of Stock -- Notify Me when Back in Stock

Found in:  DJ Power Amps



V4001 Plus

Offering DJs and pro audio installers increased power and more features for their dollar, American Audio's exciting V4001 Plus power amp replaces the older V4001 Plus. The rackmountable V4001 Plus cranks out massive wattage, with a maximum output power rating of 3,000W. In addition to significantly improved power handling, the V4001 Plus, is built with better safety circuits as well. Loaded with DC Output protection, overload protection, short circuit protection, on & off protection and turn-on thump protection, they are virtually fry-proof and greatly reduce the risk of electric shock to sound reinforcement engineers, DJs and onstage performers.

The V4001 Plus boasts signs of higher intelligence as well: American Audio has designed the amplifier to include a rear-panel contractor smart switch that disables the front-panel knobs once they've been set to their proper levels. When the switch is engaged, front-panel amp volume settings cannot be monkeyed with, providing further protection against system feedback and speaker overload. The V4001 Plus power amp also features a recessed rear panel that makes it easier to plug in connecting cables when the amp is installed on a rack.

Specifications:
  • Output Power:
    • 2 ohms, 1 khz 1% THD 1530W RMS per channel
    • 4 ohms, 1 khz 1% THD 1090W RMS per channel
    • 8 ohms, 1 khz 1% THD 660W RMS per channel (Bridged Mode, mono)
    • 4 ohms, 1 khz 1% THD 3000W RMS per channel
    • 8 ohms, 1 khz 1% THD 2170W RMS per channe
  • Total Harmonic Distortion (THD): Less than 0.1% (20Hz-20kHz, @ 4 Ohms)
  • Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 8 Ohms)
  • Dimensions: (H) 3.5" x (W) 19" x (D) 15.9"; 88cm x 48.3cm x 40.5cm
  • Weight: 31 lbs; 14 kg
  • Frequency Response:
    • +/- .5dB, 1W RMS 8 ohms (10Hz - 40 kHz)
    • +/- 3dB, 1W RMS 8 ohms (20Hz - 20 kHz)
  • Hum & Noise: 100 dB, unweighted (@ 8 Ohms)
  • Signal to Noise Ratio: 100 dB , unweighted (@ 4 ohms full power) "A" Weighted
  • Slew Rate: 25v/usec
  • Damping Factor: 400 (@ 8 Ohms)
  • Protection Circuit:
    • DC output protection, Overload protection
    • Short circuit protection, On & Off protection
  • Special Features:
    • Sub Woofer Crossover
    • Contractor Smart™ Feature (Switch on rear panel to disable front volume controls)
  • Power Consumption: 10A @ 120V AC (@ 8 Ohms)
  • Turn-On Thump Protection: Yes
  • Cooling System: Dual 2 speed fans & heatsink
