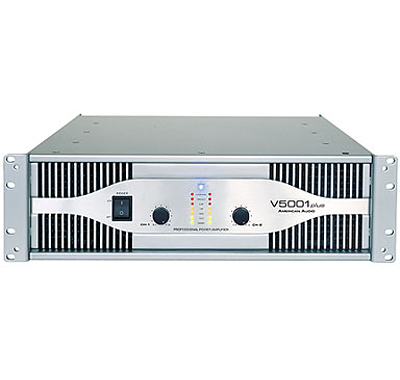

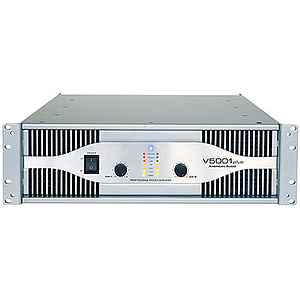

American Audio V5001 PLUS Pro DJ Power Amp (4250W Max)

V5001 Plus

Offering DJs and pro audio installers increased power and more features for their dollar, American Audio's exciting V5001 Plus power amp replaces the older V4001 Plus. The rackmountable V5001 Plus cranks out massive wattage, with a maximum output power rating of 4,250W. In addition to significantly improved power handling, the V5001 Plus, is built with better safety circuits as well. Loaded with DC Output protection, overload protection, short circuit protection, on & off protection and turn-on thump protection, they are virtually fry-proof and greatly reduce the risk of electric shock to sound reinforcement engineers, DJs and onstage performers.

The V5001 Plus boasts signs of higher intelligence as well: American Audio has designed the amplifier to include a rear-panel contractor smart switch that disables the front-panel knobs once they've been set to their proper levels. When the switch is engaged, front-panel amp volume settings cannot be monkeyed with, providing further protection against system feedback and speaker overload.

Specifications:

• Output Power:
  • 2 ohms, 1 khz 1% THD 2150W RMS per channel
  • 4 ohms, 1 khz 1% THD 1500W RMS per channel
  • 8 ohms, 1 khz 1% THD 980W RMS per channel
  • (Bridged Mode, mono)
  • 4 ohms, 1 khz 1% THD 4250W RMS per channel
  • 8 ohms, 1 khz 1% THD 3100W RMS per channel
• Total Harmonic Distortion (THD): Less than 0.03% (20Hz-20kHz, @ 4 Ohms)
• Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 8 Ohms)
• Dimensions & Weight: (H) 5.25" x (W) 19" x (D) 15.9"; 13.3cm x 48.3cm x 40.5cm
• Weight: 62 lbs (28 kg)
• Frequency Response:
  • ±.5dB, 1W RMS 8 ohms (10Hz - 35 kHz)
  • ±3dB, 1W RMS 8 ohms (5Hz - 85 kHz)
• Hum & Noise: 100 dB, unweighted (@ 8 Ohms)
• Signal to Noise Ratio: 100 dB , unweighted (@ 4 ohms full power) "A" Weighted
• Slew Rate: 25v/usec
• Damping Factor: 400 (@ 8 Ohms)
• Protection Circuit:
  • DC output protection, Overload protection
  • Short circuit protection, On & Off protection
• Special Features:
  • Sub Woofer
  • Crossover 20-200Hz
  • LED mode indicator
  • Contractor Smart™ Feature (Switch on rear panel to disable front volume controls)
• Power Consumption: 45A @ 120V AC (@ 4 Ohms) / 22.5A @ 240V AC (@ 4 Ohms)
• Turn-On Thump Protection: Yes
• Cooling System: Dual 2 speed fans & heatsink
