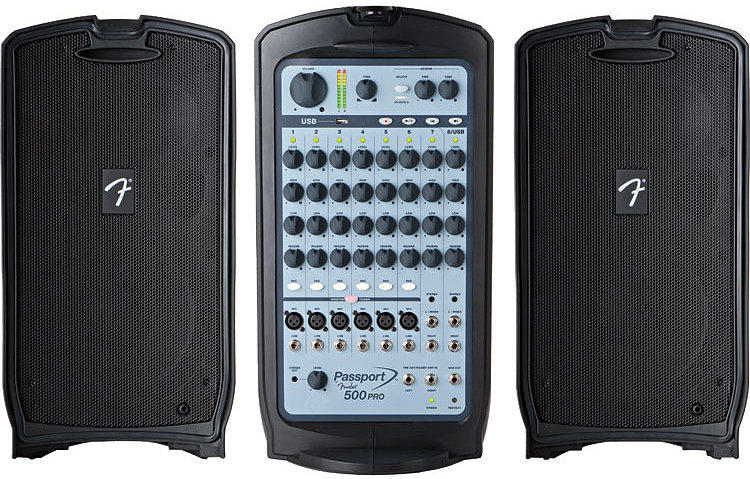

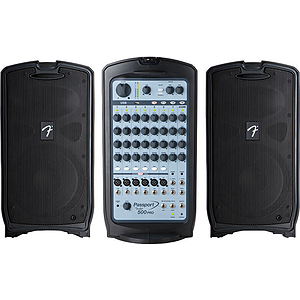

Fender Passport 500 PRO Portable PA System

Passport® audio systems by Fender® bring you the very best in portable audio solutions.Known for portability, ease of use, innovative design and exceptional quality and value. Passport is perfect for whatever your application may be-education, sporting and worship events;meetings, seminars and presentations; gigs, small clubs and coffee houses, and so many other uses.

Any time and any place you need a big sound with great clarity and convenience,there's a Passport system that's right for you.

Any time and any place you need big sound with great clarity and convenience, there's a new Passport PRO system by Fender that's right for you. Take a close look and listen, and we know you'll agree that Passport will take you places now as never before-Sound That Travels.

The new PRO models are the latest step in the ongoing evolution of Passport into the very finest in portable PA solutions. We've kept the best of previous Passport generations and added new features and improved functionality so that new Passport systems are ideal for whatever your application may be-education, sporting and worship events; meetings, seminars and presentations; gigs at parties, small clubs and coffeehouses. The eight-channel Passport 500 PRO is the new top-of-the-line Passport system. The 500 model has always had the most power and the best clarity; now it also has a port that lets you record your performance with CD quality (.wav) straight to a USB flash drive, CD-quality .wav and mp3 file playback, sub-out jack for an external powered sub-woofer, lighter weight (a full 9 lbs. lighter than the earlier Passport 500 model), smaller physical dimensions, and a redesigned speaker system with 10" woofer and improved clarity.

Features and Specifications

• USB Port that lets You Record Your Performance with CD Quality (.wav) Straight to a USB Flash Drive
• Six Mic Lines with XLR and 1/4" inputs
• Two Stereo Inputs with 1/4" and 1/8" (for MP3 Player) Inputs
• 1/4" Subwoofer Out with 120Hz High Pass Filter on Speaker Out,
• CD-Quality .wav and mp3 File Playback
• Docking Connector for Passport Wireless Receiver
• Speaker Systems Feature Tightly Controlled Coverage to Minimize Feedback
• 35mm (1-3/8") Stand Adapters are Built In to Each Speaker Cabinet
• Two Speaker Cables, and a Detachable Power Cable are Provided. (Mic / Cable Storage Compartment with Latching Lid.)
• 500 Watts Stereo, 250 Watts Continuous Power Per Channel Into 8 ohms
• Two Speaker Cabinets with One 10" Woofer and One 1.2" Horn Loaded Tweeter


• Description: Complete Self Contained Portable Sound System
• Series: Passport
• Dimensions: Height: 23" (58.42 cm)
• Width: 29" (73.66 cm)
• Depth: 11" (27.94 cm)
• Weight: 44 lbs. (19.96 kg)
• Covering: Black Luggage Style Molded Plastic Case
• Power Output: 500 Watts Class-D Power Amp

Level Meters
Master Tone
Reverb 1 / Reverb 2 Select Switch
Reverb Time
Reverb Tone

USB Input
Record
Play / Pause
Previous
Next

Signal Present/Clip Indicator LED
Level
High / Low
Reverb
Pad (-20dB)

Mic
Line
Phantom Power

1/8" Stereo
1/4" Left (Mono) / Right

Stereo Out
Level
Pre Out / Power Amp In
Sub Out

Switchable Line Voltage for International Use
On/Off Power Switch
Power Socket
Fuse
Speaker Output Jacks
