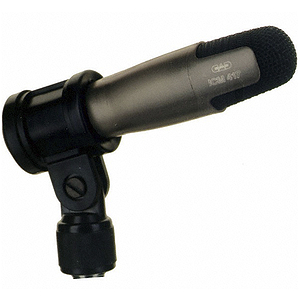

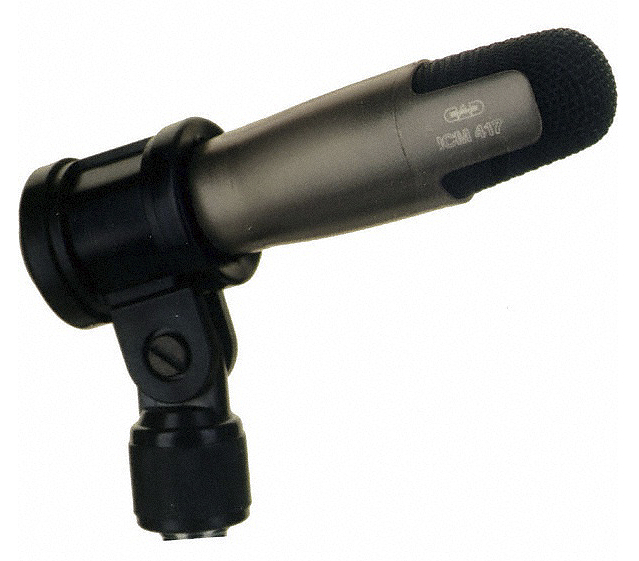

CAD ICM-417 Drum Microphone

Packaged in a rugged small, all metal body, the ICM417 electret condenser microphone provides natural, transparent sound quality. The transformerless design of this cardioid condenser provides optimum low frequency response and low distortion. Designed for use with cymbals, overheads, and stringed instruments, the wide, flat frequency of the ICM417, coupled with the CAD exclusive I.N.R.T shockmount, make this an extremely high quality percussion microphone, as well.

Specifications:

• Generating Element: Electret condenser (Phantom Powered)
• Polar Pattern: Unidirectional (Cardioid)
• Frequency Response: 40 Hz - 20 kHz
• Power Level: -37 dB (0 dB = 1 mW per 10 microbars)
• Open Circuit Voltage: -57 dB (0 dB = 1 volt per microbar) 14 mV/Pascal
• Impedance: Low (250 ohms nominal)
• Dynamic Range: 104 dB
• Equivalent Noise Level: Less than 26 dB, A weighted
• Maximum SPL: 130 dB (1% THD, open circuit)
• Supply Voltage: 9 - 52 Vdc, positive pins 2 & 3 reverse polarity protected
• Current Required: Less than 5 mA over operating voltage range Phasing: Positive pressure on diaphragm generates a positive voltage on pin 2 relative to pin 3
• Shock Mounting System: I.N.R.T (Impact Noise Rejection - proprietary rubber compound)
