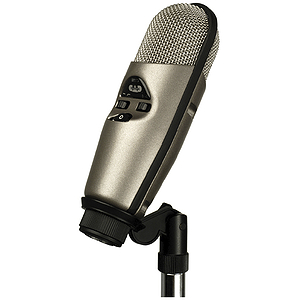

CAD M-179 Servo-Condenser Microphone

Resulting from over a decade of active development, the M179 is one of the first in a new generation of CAD condenser microphones. Using the latest computer modeling tools has resulted in a microphone that features the best of old world and new world technology at an astonishingly affordable cost.

The M179 has an adjustable polar pattern, and features a dual sided, externally biased capsule with a gold sputtered 1.1" diaphragm. The M179 has a high speed, low noise operational amplifier head amp, coupled with a new discrete high efficiency power supply circuit. This results in incredibly low noise, low distortion and fast transient response. The M179 will even work with 24-volt phantom supplies. The M179 also features a non-capacitive 20 dB pad switch and an 80 Hz high-pass filter.

The adjustable polar pattern allows you to travel the space-tone continuum with the touch of a dial! The figure-of-eight is rich and intimate. The omni is spacious and articulate. Experience all the variations in between. We combine the large-diaphragm capsule with algebraic phasing and high-power transformerless drive to create an indispensable acoustical window.

Specifications:

• Type: Side Address, External bias condenser
• Frequency Response: 10-20 kHz
• Polar Pattern: Variable
• Impedance: Low (200 ohms nominal).
• Open Circuit Voltage: -56 dB (0 dB = 1 volt per microbar). 15.9 mV/Pascal.
• Dynamic Range: 133 dB.
• Equivalent Noise Level: 11 dB Equivalent SPL, A weighted
• Maximum SPL: 143 dB SPL (With pad on)
• Total Harmonic Distortion: Less than 0.15%
• Powering: Minimum Requirements are 24, 48 Volt Phantom Power capable of delivering at least 8 mA.
• Connector: Three pin male XLR type.
• Finish: "Titanium" Grey with Nickel Plated front & rear screen.
• Dimensions: 2.25" (57.2 mm) Dia., x 7.00" (177.8 mm) High
• Net Weight: 17.8 oz. (506 grams)
