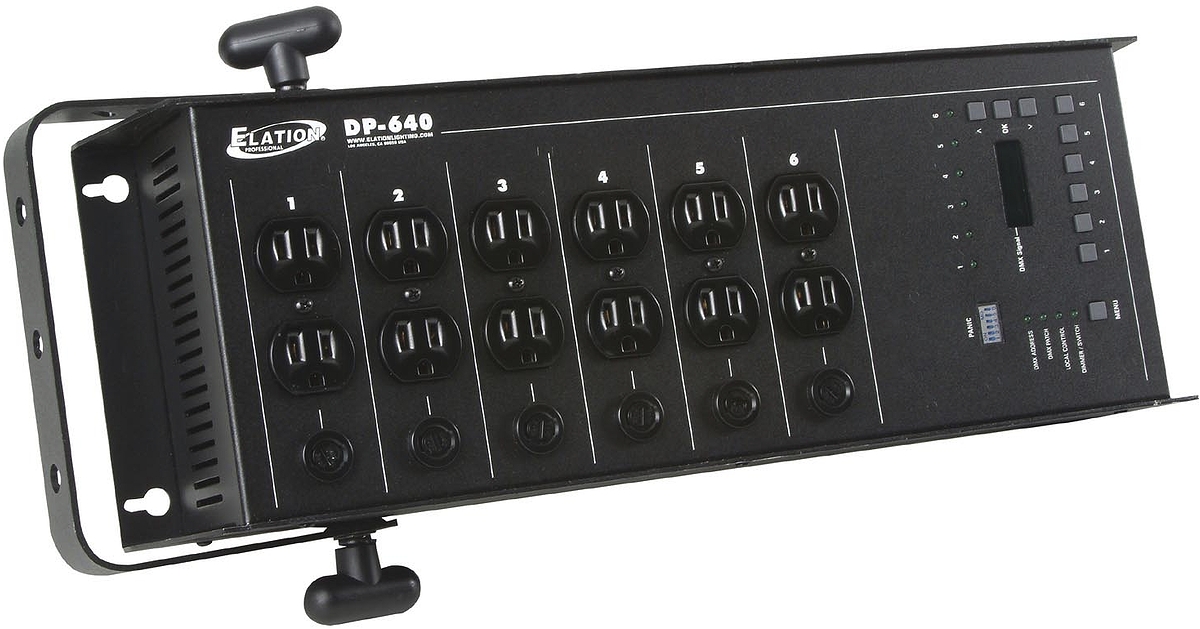

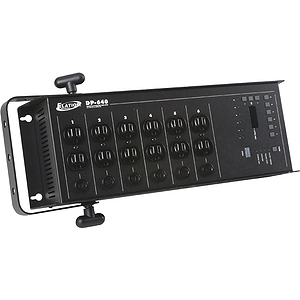

Elation DP-640 DMX Dimmer Pack

6 channel hybrid DMX pack: serves as dimmer or power pack.

• Digital display - used to set starting DMX address channel and set all other menu options.
• Individual DMX addressing for each channel.
• 6 position dip switches for Panic function.
• Adjustable master dim level.
• Adjustable channel dim level- with HTP.
• Two three prong Edison sockets per channel.
• 3 pin XLR DMX Input & Output.
• Six LED’s display channel activity.
• Individual fuse protection for each channel.
• Six external channel fuses for quick and easy replacement.
• Sleek aluminum case.
• Zero crossing circuitry for protection of transformer loads when switching.
• Use in conjunction with DMX Operator Pro, Stage Setter-8, Scene Setter, Scene Setter-48 and Stage Desk-16.
• Power Input: Dual 12AWG cables with 15A plugs- 120V ~ 60Hz each.
• Maximum Load: 10A per channel / 20A per phase - 40A total with 20A plugs.
• Dimensions: 19.9”L x 6.8”W x 3.7”H.
• Weight: 11 lbs.
