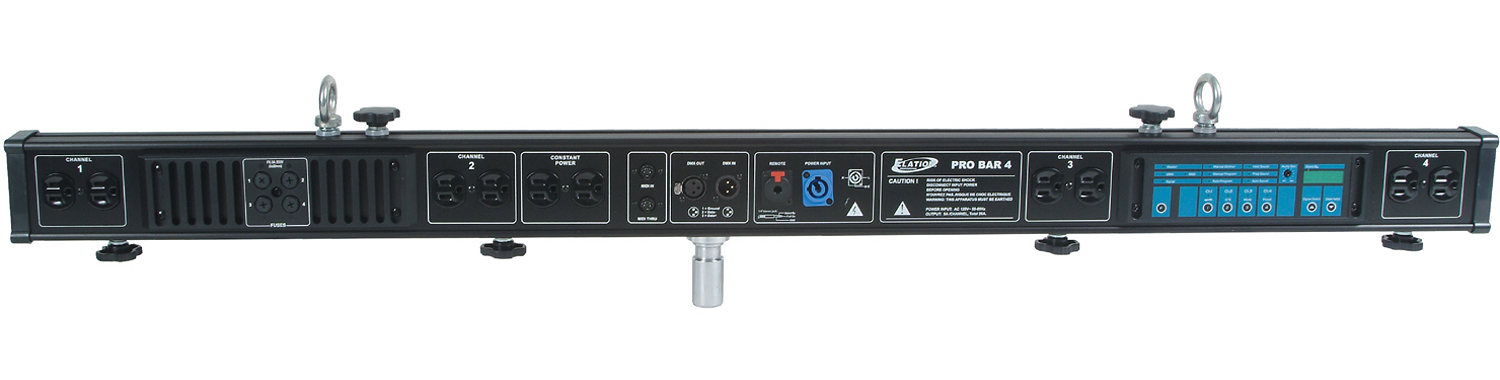

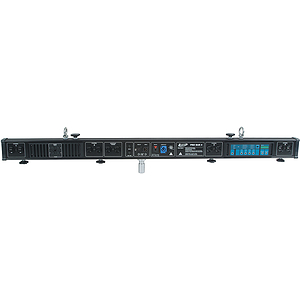

Elation Pro Bar 4-Channel DMX Control

The Pro Bar is a 4 channel DMX Bar with 16 built in Chase Patterns, and switchable dimmer/power pack modes. A DMX control can activate a 4 channel manual dimmer mode to be controlled by external DMX controller.

• Pre-heat function.
• Adjustable master dim level.
• Adjustable channel dim level.
• Individual DMX addressing for each channel.
• Built in microphone for music sync function.
• Digital display- used to set starting DMX address channel and set all other menu options.
• Two three prong Edison sockets per channel.
• One constant / dual three prong Edison socket.
• 3 pin XLR DMX Input & Output.
• External channel fuses for quick and easy replacement.
• Zero crossing circuitry for protection of transformer loads when switching.
• One 3 pin XLR foot controller input.

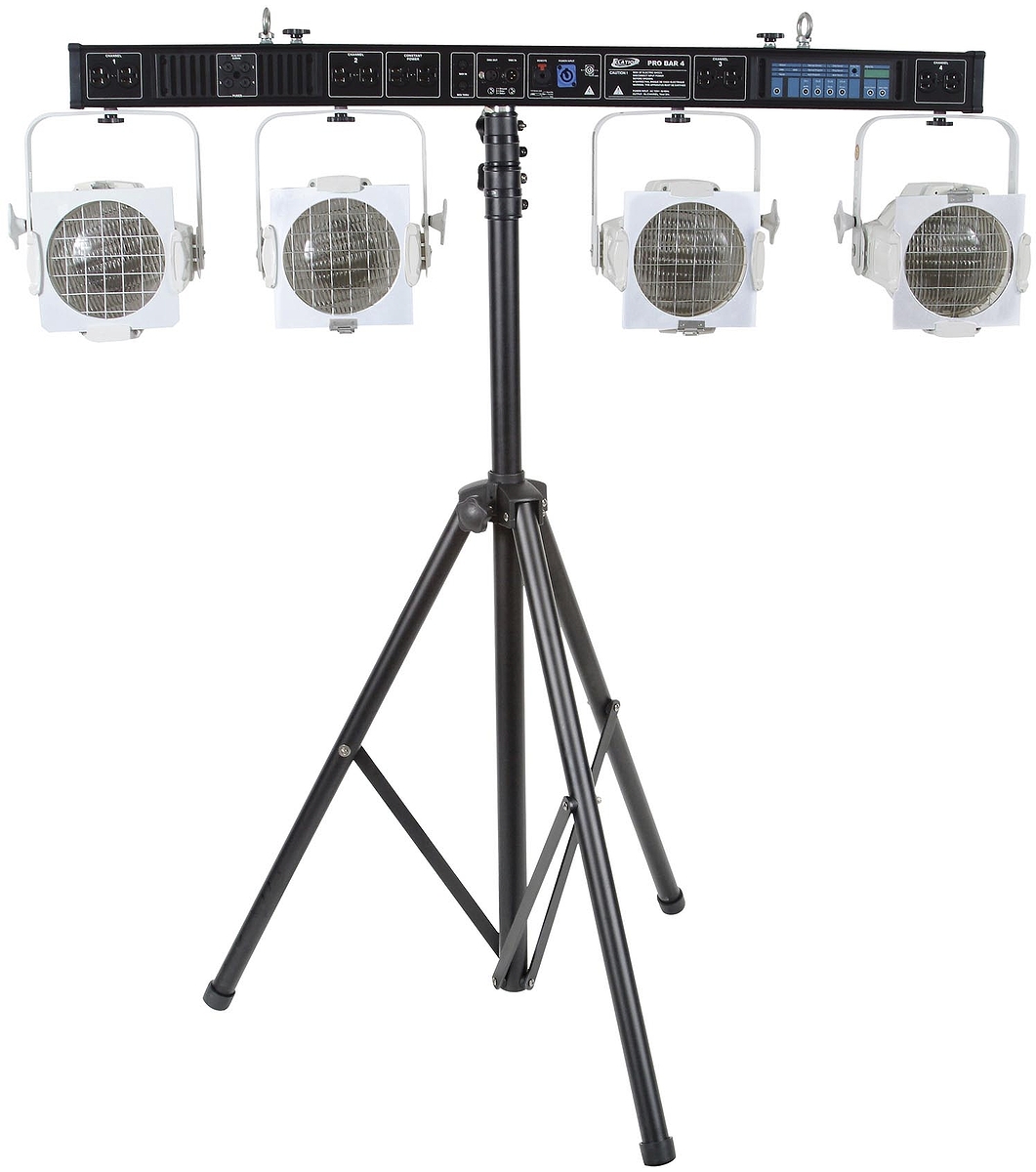

• 6 mounting knobs for Par Cans.
• 2 eye hooks for aerial rigging.
• 1 adapter for stand mount (For use with LTS-3 stand).
• Control via DMX with the Elation DMX Operator Pro, Stage Setter-8, Scene Setter, Scene Setter-48 and Stage- Desk-16.
• Optional foot controller model Bar-FS (sold separately).
• Power Input: 120V ~ 60Hz.
• Maximum Load: 5A per channel / 20A total.
• Dimensions: 3"L x 51.75"W x 7"H.
• Weight: 11.5 lbs.
