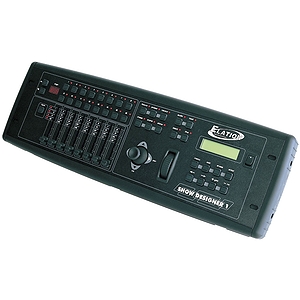

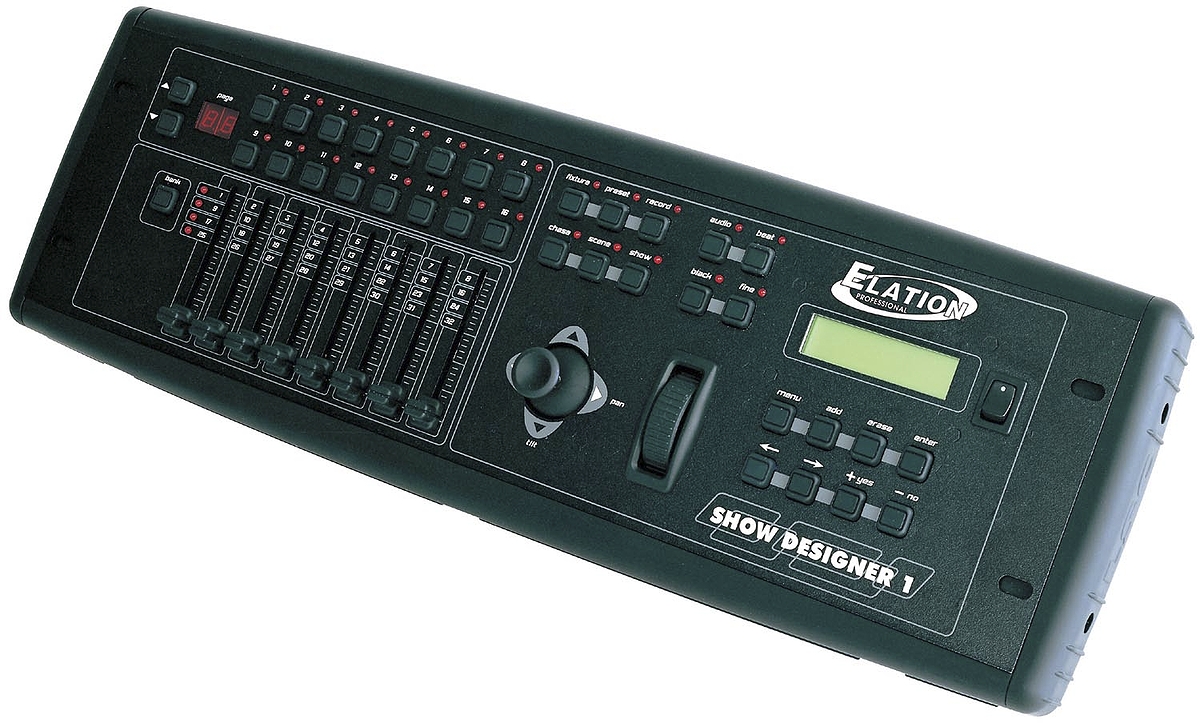

Elation Show Designer I - 512-Channel DMX Lighting Controller

The Affordable Alternative For Professional DMX Lighting Control!

The Show Designer 1 offers all the same features as the popular Show Designer plus added features to make lighting control and show designing even easier!

Main Features

• PAN/TILT Joystick
• Controller comes "Tabletop Style"-Includes removable rubber rails to fit standard 19-inch rack mount
• Control a wide variety of DMX intelligent lighting fixtures
• Large library of fixture settings for many different brands of lighting equipment
• Control up to 512 channels (USITT DMX-512 compatible)
• Control up to 16 large fixtures (up to 32 channels each) or 16 groups of smaller fixtures
• Hold up to 1024 scenes, 512 presets, 256 chases and 256 shows
• Fixtures and memories are quickly selectable from an array of 16 switches
• Software updates can be easily downloaded from www.elationlighting.com or www.americandj.com
• Use in conjunction with the PP-DMX20L or the DP-DMX20L
• MIDI Capable

• 8 faders allow direct control of channel settings for 32 channel fixtures using a bank switch
• Large rotary wheel for control of pan, tilt, chase speed, crossfade times or data entry
• Pan and tilt can also be controlled using a standard PC trackball/keyboard (sold separately)
• 32 character backlit LCD display for easy programming

• 3 pin XLR connector for DMX-512 output
• Polarity switch to accommodate different types of cable requirements
• MIDI In & Out
• Audio input
• RS232 trackball connector port
• Power input: 120V DC 9V power supply included
• Dimensions: 19" x 5.25" x 4.75" - Standard 19" rack mount, 3 rack spaces
• Weight: 7 lbs.
