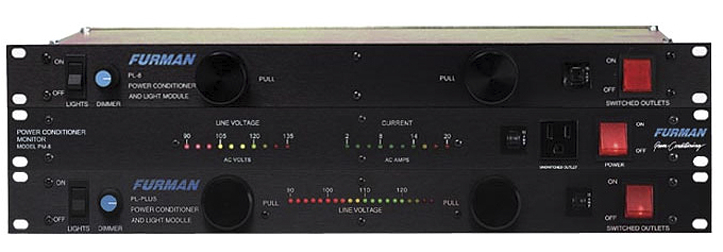

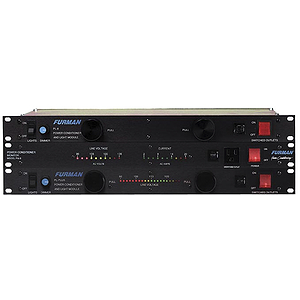

Furman PL-8 Power Conditioner/Light Module

The PL-8 Power Conditioner/Light Module is the perfect accessory to any equipment rack, providing the basic power protection essential to every audio or video system. Install a PL-8 in the top slot of your rack, and the eight switched AC outlets on the rear panel will power up all your equipment while its two slide-out light fixtures provide discreet, illumination of their controls on stages, in studios, or in any dark place. A dimmer control lets you adjust the lamp brightness to just the right level.

The PL-8 protects your delicate electronic equipment by combining a high voltage surge and transient suppressor with an RFI/EMI interference filter. The fast-acting suppression circuit responds in nanoseconds, clamping spikes and surges to safe levels. The filter works to prevent noise from fluorescent lights, electric motors, radio transmitters, and similar sources of "electronic pollution" from leaking from the AC line into sensitive analog or digital circuits.

The PL-8's lamps come supplied with 7 watt night-light bulbs. Replacements are readily available in 4 watt or 7 watt sizes at most supermarkets and hardware stores. Colored Christmas tree bulbs may also be used. Bulbs are easily replaced without removing the unit from the rack by unscrewing the cap on the end of each light tube.

The PL-8 has a master switch for the rear outlets that glows red when the power is on. There is also a separate switch for the lamps, allowing you to check your equipment settings before applying power to it. The front-panel circuit breaker can be easily and quickly reset should the PL-8 be overloaded.

Features:

• Two slide-out, swiveling light fixtures for rack illumination
• Dimmer control for lamp brightness
• Eight accessory outlets in rear controlled by front switch
• Triple-mode varistor spike and surge protection
• RFI filtering
• 15 amp rating, with circuit breaker
• Separate switch for lamps

• Current rating: 15 amps
• Input Voltage: 85 to 135 VAC
• Spike Protection Modes: Line to neutral, neutral to ground, line to ground
• Spike Clamping Voltage: Initial turn-on at 200 volts; TVSS rating of 400 volts peak at 500 amps, L-N, N-G, L-G (tested to UL-1449) (Initial turn-on for"E" versions, 390 volts peak L-N; 680 volts peak N-G, L-G)
• Response time: 1 nanosecond
• Maximum surge current: 6,500 amps
• Maximum spike energy: 80 joules per mode, 240 joules total protection ("E" versions 130 joules L-N, 160 joules N-G, L-G, 450 joules total)
• Mechanical: Dimensions: 1.75" H x 19" W x 8" D. Weight: 6 lbs (2.7 kg). Construction: Steel chassis, zinc chromate plating; .125" brushed and black anodized aluminum front panel; glass epoxy printed circuit boards.
• Power consumption: 20 watts
• Safety Agency Listings: UL, CUL, CE.
