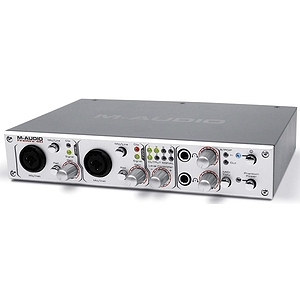

M-Audio FireWire 410 Mobile Recording Interface

FireWire 410 is a FireWire-compatible audio/MIDI interface that has it all-power, flexibility, compact size and low price. FireWire 410's 4-in/10-out configuration complete with preamps is perfect for personal recording, routing discrete outputs to a mixer, or directly driving a surround sound system. The on-board ASIO 2-compliant mixer and software control panel provide total routing flexibility-including monitoring with external effects. You also get ultra-low latency software monitoring and near-zero latency hardware direct monitoring-and two headphone outs with independent level controls let you collaborate with a partner anywhere, anytime. FireWire 410 can even be completely bus-powered for total mobile operation (6-pin FireWire port required)

Features:

• 4 x 10 FireWire audio interface
• 192kHz stereo out
• 2 x 8 24-bit/96kHz analog I/O (1/4" TS)
• Dual mic/instrument preamps (Neutriks XLR/ 1/4" TS)
• Global phantom power
• 66dB available preamp gain
• S/PDIF digital I/O (coaxial/optical) w/ 2-channel PCM
• Digital I/O supports surround-encoded AC-3 and DTS passthrough
• 1 x 1 MIDI I/O w/ bypass for stand-alone use
• 2 headphone outs w/ individual level controls (1/4" TRS)
• Stereo monitor level control
• Low-latency software monitoring
• Direct hardware monitoring
• 8 analog outs can directly drive up to 7.1 surround
• Software-controlled mixing and routing
• Software-assignable level controller
• Powered via DC supply or FireWire bus*
• 2 convenient high-speed FireWire ports
• Includes Ableton Live Lite 4 music production software, so you can make music right away
• * 6-pin FireWire port required

• Frequency response: 20Hz-40kHz +/-1db
• Signal-to-noise ratio: -107dB (typical, A-weighted)
• Dynamic range: 108dB (A-weighted)
• THD: 0.00281%
• Sample rates: 32kHz to 192kHz (192kHz on line outputs 1 & 2 only)
• 44.1kHz, 48kHz and 96kHz (S/PDIF I/O)
• Operating level: -10dB, unbalanced
• Size/weight: 9-1/4" X 7" X 1-7/8"; 2.9 lbs.

• ASIO 2
• MME
• Sound Manager
• OMS
• DirectX
• Mac OS X Core Audio / Core MIDI
• GSIF 2

• Pentium III 500 MHz w/ 128MB RAM
• Windows 2000 (SP4) / XP (SP1)
• DirectX 8.1 or higher
• 6-pin FireWire port or adapter

• Macintosh G3* 600 MHz/G4* 667 MHz
• OS 9.2.2, 128MB RAM; OS X 10.1.5, 10.2.6 or greater, 256MB RAM
• OMS 2.3.8 for MIDI under OS 9.2.2
