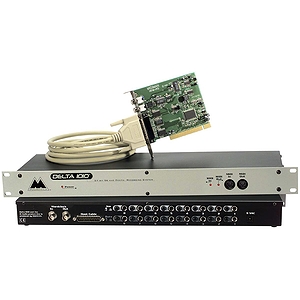

M-Audio Delta 1010 PCI Audio/MIDI Interface

Recognized around the world as the top choice in host-based PCI digital audio solutions, the rack-mount Delta 1010 is designed to handle the needs of the most demanding project and professional studios. Superb engineering and ultra-high quality converters deliver fidelity surpassing systems that cost many times more. Multiple inputs accommodate recording numerous tracks simultaneously, including zero-latency monitoring for seamless overdubs. Multiple outs route individual tracks or soft synth/sampler timbres to a mixing console, or directly drive up to 7.1 surround sound systems. The analog outs also remain live for monitoring while mixing or transferring digital signals via S/PDIF. MIDI I/O rounds out everything you need to take advantage of today's music software. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.

Features:

• 10 x 10 24-bit/96kHz full-duplex recording interface
• 8 x 8 analog I/O on balanced/unbalanced 1/4" TRS
• S/PDIF digital I/O (coaxial) with 2-channel PCM
• SCMS serial copy management control
• Digital I/O supports surround-encoded AC-3 and DTS pass-through
• Up to 24-bit/96kHz fidelity
• 1 x 1 MIDI I/O
• Analog outs can directly drive up to 7.1 surround
• +4dBu/-10dBV operation individually switched on rack-mount unit
• Word clock I/O for sample-accurate device synchronization
• Software-controlled 36-bit internal DSP digital mixing/routing
• Zero-latency monitoring
• Apple G5 compatible - Incompatible exceptions
• Includes Ableton Live Lite 4 music production software, so you can make music right away

Specifications:

• Frequency response: 22Hz-22kHz, +0.3/-0.2dB
• Dynamic range: Outputs: 116dB, Inputs: 109dB (A-weighted)
• Signal-to-noise ratio: Outputs: -116dB, Inputs:-108dB (A-weighted)
• THD: < 0.002% (A/D), < 0.002% (D/A)
• Size/weight (breakout box): 1-3/4" x 19" x 6-1/8"; 4.9 lbs.

Compatibility:

• ASIO 2
• MME
• Sound Manager
• OMS
• DirectX
• GSIF 2
• Mac OS X Core Audio / Core MIDI

System Requirements (PC):

• Windows 98SE / Me / 2000 (SP4) / XP (SP1)
• For 96kHz operation: Pentium III 500mHz w/ 128MB RAM
• For 48kHz operation: Pentium II 400 w/ 64MB RAM

System Requirements (Mac):

• G3/G4* 500MHz
• OS 9.2.2, 128MB RAM; OS X 10.1.5, 10.2.6 or greater, 256MB RAM
• OMS 2.3.8 for MIDI under OS 9.2.2
