M-Audio Audiophile 192 Audio Interface
Rollover image for closeup

M-Audio Audiophile 192 Audio Interface

Item #: EM.MA-9900-40768-00

List Price: $199.95
Our Price:

No Rating Unrated ( Be the first to review this item )

by M-Audio

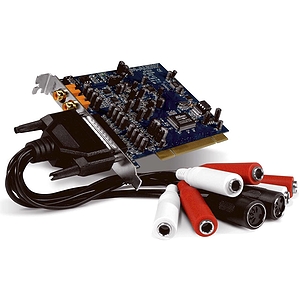

Computer PCI Audio Card with Digital I/O and MIDI. Made by M-Audio. (EM.MA-9900-40768-00)

Free Shipping on this item in orders above $199

Temporarily Out of Stock -- Notify Me when Back in Stock

Found in:  Audio InterfacesMIDI Interfaces


The Audiophile 192 continues the legacy of M-Audio's industry-standard Delta audio card line. Building on M-Audio's Audiophile 2496-one of the world's most popular audio cards-the Audiophile 192 features high-definition 192kHz sampling rate, digital I/O, balanced analog I/O and an amazing signal-to-noise ratio. The Audiophile 192 represents a new benchmark in audio performance that's as good as it gets for music production, mastering and critical listening. As with all Delta cards, you get rock-solid drivers and seamless integration with your favorite Mac and PC applications-and even the ability to combine multiple Delta cards in one system*. And since M-Audio is always ahead of the pack, this world-class card is also compliant with PCI 2.2 and 64-bit audio drivers so you're ready to take advantage of next-generation platforms and software. The Audiophile 192 is the new world-class standard in stereo audio cards.


  • Up to 24-bit/192kHz audio
  • 2 balanced analog inputs (1/4" TRS)
  • 2 balanced analog outputs (1/4" TRS)
  • S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM
  • SCMS copy protection control
  • Digital I/O supports surround-encoded AC-3 and DTS pass-through**
  • Direct hardware input monitoring via separate balanced 1/4" TRS monitor outputs
  • Software routing of inputs and outputs
  • Digital I/O can be routed to/from external effects
  • 16-channel MIDI I/O
  • ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications
  • 64-bit driver support for Windows
  • PCI 2.2 compatibility
  • Apple G5 compatible
  • Includes Ableton Live Lite 4 music production software, so you can make music right away
  • Works with other Delta cards*

  • General
  • Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192

main inputs
  • Max input (balanced): +14.2dBu (4 Vrms)
  • Max input (unbalanced): +14.2dBu (4 Vrms)
  • Signal to noise ratio: -113dB @ 48kHz (A-weighted)
  • Dynamic range: 113 dB @ 48kHz (A-weighted)
  • THD + N: 0.0006%, 1kHz, -1dBFS @ 48kHz
  • Frequency response: +/-0.1dB, 20Hz to 20kHz @ 48kHz
  • Crosstalk: -130dB, 1kHz, channel-to-channel
  • Impedance (balanced): 20k Ohms
  • Impedance (unbalanced): 10k Ohms

main outputs
  • Max output (balanced): +14dBu (3.9 Vrms)
  • Max output (unbalanced): +8dBu (1.95 Vrms)
  • Signal to noise ratio: -108dB @ 48kHz (A-weighted)
  • Dynamic range: 109dB @ 48kHz (A-weighted)
  • THD + N: 0.0023%, 1kHz, -1dBFS @ 48kHz
  • Frequency response: +/-0.1dB, 20Hz to 20kHz @ 48kHz
  • Crosstalk: -105dB, 1kHz, channel-to-channel
  • Impedance (balanced): 300 Ohms
  • Impedance (unbalanced): 150 Ohms

  • ASIO
  • WDM
  • GSIF 2
  • Core Audio

System Requirements (PC):
  • Pentium 3 - 700 MHz or higher, 256 MB RAM (192 and 96kHz operation)
  • Pentium 3 - 500 MHz or higher, 128 MB RAM (48kHz operation)
  • DirectX 9.0b or higher
  • Windows XP (SP1) or Windows 2000 (SP4)
  • Available PCI slot

System Requirements (Mac):
  • Macintosh G4 733 MHz or higher
  • 512MB RAM
  • Mac OS (10.4 or later) or Panther (10.3.4)
