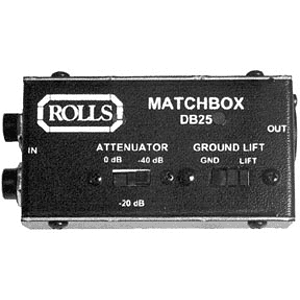

Rolls DB25 Matchbox

The DB25 is a transformer balanced, passive direct box. It features a Ground Lift switch for hum elimination, and an Attenuator switch for padding the input signal by 20dB, or 40 dB. Padding the input signal provides a way to connect the DB25 to a line level signal, even a speaker level signal and connecting it to a balanced line input (not a mic input) on a mixer. The two 1/4" inputs are paralleled for guitarists to "pass-through" their input signal to a tuner.

Specifications:

• Frequency Response: 50 - 15kHz +/- 3 dB
• Output Impedance: 600 ohms
• Input Impedance: 50K ohms
• Max Output Level: +4 dBm
