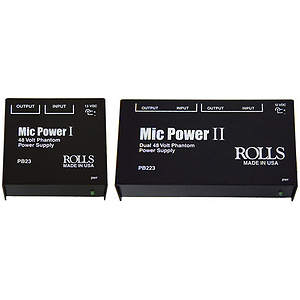

Rolls PB23 Phantom Power Adapter

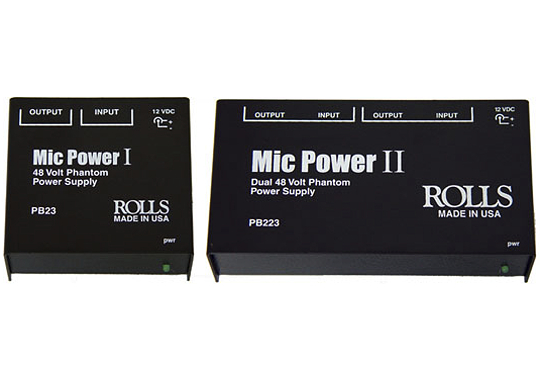

The PB23 and PB223 are for powering phantom powered microphones with either 12VDC or 48VDC. Since the units use a 100KHz switching power supply there is no audio noise generated. They have output pull down resistors so they will work with any mixer and have 2DC jacks so several units can use one adapter. The PB223 is identical to the PB23, except it powers two microphones rather than one.

Specifications:

• Phantom voltage: 12V or 48V selectable
• Jacks: Male and Female XLR, 2 5mm DC input jacks
• Control: 12/48 volt selector switch
• Power Input: 14 - 18 VCD (included)
• Size: PB23: 3" x 2.5" x 1.25"; PB223: 6" x 2.5" x 1.25
• Weight: PB23 - 1 lb (.34 Kg); PB223 - 1.5 lbs. (.68 Kg)
