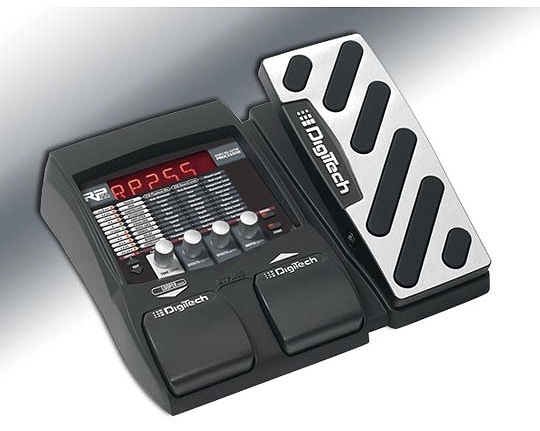

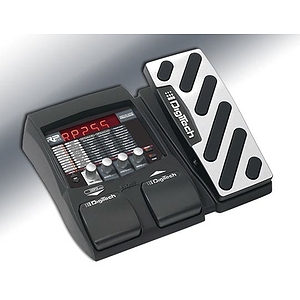

DigiTech RP255 Modeling Guitar Multi-Effects Processor with USB Recording Interface

Gig, practice and compose

The RP255 guitar multi-effect processor gives you 94 amps, cabinets, stompboxes, and effects allowing you to get virtually any sound you want, just like the pros. With USB streaming audio and Cubase LE4, the RP255 allows you to easily record directly to your computer with sounds so good people will think that your song was recorded in a major studio.

Tones, tones and more tones...

With over 94 amps, cabinets, stompboxes and effects the RP255 has nearly limitless tonal combinations for both live performances and recording. Never will you have to wonder “what if I had that effect or amp” again. When you are creating your personal tone, it’s best to have an abundance of options to try and perfect.

Topping the RP255 off is the combination of Cubase LE4 recording software and 2x2 USB audio streaming. Easily record to your home computer and make the music you want, the way you want it to sound.

Features

• 20 Second looper
• 94 Amps, cabinets, stompboxes and effects
• 24 Amp/Acoustic Types
• 15 Cabinet Types
• Lexicon® Reverbs
• 30 Tone and 30 Effects Libraries
• 120 presets (60 factory, 60 user)
• Cubase® LE4 recording software included
• Up to 5 seconds of delay time
• 24-bit 44.1kHz sample rate
• 60 High quality drum patterns
• 2 x 2 USB audio streaming
• USB editing via DigiTech X-Edit™
• Independent 1/4" Left and Right Outputs
• Amp/Mixer switch to engage speaker cabinet model
• Stereo 1/8" headphone output
• Stereo 1/8" Aux Input
• Built-in chromatic tuner
• Durable die-cast chassis
• Built-in expression pedal
• Power supply included

'57 Fender®Tweed Champ®
'57 Fender® Tweed Deluxe®
'59 Fender®Tweed Bassman®
'65 Fender® Blackface Twin Reverb™
'65 Fender® Blackface Deluxe Reverb
'65 Marshall® "JTM-45
‘68 Marshall® 100 Watt Super Lead™*(plexi)
‘68 Marshall® Jump Panel
‘77 Marshall® Master Volume™
‘83 Marshall®*JCM800
‘93 Marshall® JCM900
‘62 Vox® AC15
‘63 Vox® AC30 Top Boost
‘69 Hiwatt™ Custom 100 DR103
‘81 Mesa/Boogie® Mark II C
‘01 Mesa/Boogie® Dual Rectifier™
‘96 Matchless HC30
‘88 Soldano® SLO-100
DigiTech® Bright Clean
DigiTech® Clean Tube
DigiTech® High Gain
DigiTech® Metal
DigiTech® Solo

Arbiter® Fuzz Face
Boss® DS-1 Distortion
Boss® MT-2 Metal Zone®
DigiTech® Death Metal™
DigiTech® Grunge®
DOD® 250 Overdrive/Preamp
DOD® Gonkulator Ring Modulator
Electro-Harmonix Big Muff π®
Guyatone Overdrive OD-2
Ibanez® TS-9 Tube Screamer™
Ibanez® TS-808 Tube Screamer™
MXR® Distortion +
ProCo Rat™

'57 Fender® Tweed Champ™ 1x8”
'57 Fender® Tweed Deluxe Reverb® 1x12”
'65 Fender® Blackface Twin Reverb™ 2x12”
'63 Vox® AC30 Top Boost w/Jensen® Blue Backs 2x12”
‘59 Fender® Tweed Bassman® 4x10”
Marshall® 1969 Straight w/Celestion® G12-T70 4x12”
Marshall® 1969 Slant w/Celestion® 25WGreenbacks™* 4x12”
Johnson® Straight w/Celestion Vintage 30’s 4x12”
DigiTech® Solo 4x12
DigiTech Bright 2x12
DigiTech Metal 4x12
DigiTech Rock 4x12
DigiTech Alt 4x12
DigiTech Vintage 4x12

Specifications:

• A/D Converter: 24-bit high performance audio
• D/A Converter: 24-bit high performance audio
• Sampling Frequency: 44.1kHz throughout
• DSP Section: 1 Audio DNA2™ DSP Processor
• Simultaneous Effects: 11
• Preset Memory: 60 User / 60 Factory Presets
• Drum Machine: 60 High Quality Patterns

• Impedance: 500K Ohms
• Maximum input signal: 8 dBu

• Impedance: 500 Ohms unbalanced / 2K Ohms balanced
• Maximum Output level: +10dBu

• Impedance: 50 Ohms
• Maximum Output level: 13.6 mW / channel

• USA/Canada: 120 VAC, 60 H
• Adapter: PS0913B-120

• USB: 2.0 compliant
• Audio streaming: 2 channels to computer, 2 channels from computer
• Sample rate: 44.1 kHZ

• Unit Dimensions: 14" x 8.5" x 2.5" (W x H x D)
• Shipping Dimensions: 15" x 8.5" x 2.75"
• Shipping Weight: 4.75 lbs

• Vista Home/Premium, XP Home/Professional (SP 2 installed, .NET Framework 2.0* installed)
• 800 MHz processor speed (1.2 GHz recommended)
• 512MB RAM (1GB recommended)
  *.NET 2.0 will be installed during installation of X-Edit software if required on XP systems

• OS 10.4.x, 10.5
• PowerPC or Intel® G4, G5 processor 800 MHz (1.2 GHz recommended)
• 512MB RAM (1GB recommended)
