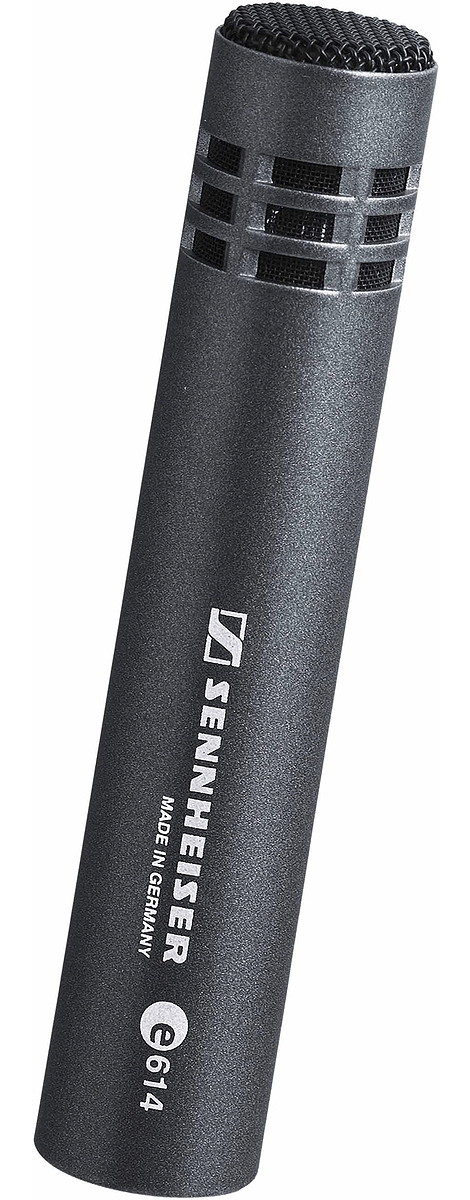

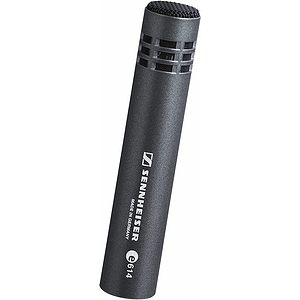

Sennheiser E614 Instrument Condenser Microphone

The e614 is a supercardioid back-electret condenser microphone, designed for demanding instrument recordings that require extended frequency response, high SPL, fast transient response and compact mic size. While percussion pick-up was the first design priority, the e614 also works exceptionally well on woodwind and string instruments, and is a good choice for flute and sax where it captures the full body of the instrument. The e 614 can handle high SPLs and features a medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties this mic is also ideal for home recording.

Features

• Designed for demanding applications where extended frequency range, high SPL, fast transient response and small size are required
• Captures the "air" and the body of the instrument
• Nearly flat response from 40 Hz to 20 kHz and a super cardioid pattern

Technical Data

• Frequency response: 40–20,000 Hz
• Transducer principle: electret condenser
• Pick-up pattern: Supercardioid
• Front-to-back-rejection at 1 kHz at 135° > 15 dB
• Sensitivity (free field, no load) 1 kHz: 3.0 mV/Pa
• Nominal impedance at 1kHz: 50 O
• Min.terminating impedance: 1 O kW
• Power Supply: 12 – 52 V / 3 mA phantom powering
• Weight: 3.28 oz.
• Dimensions: .70" x 3.94"
