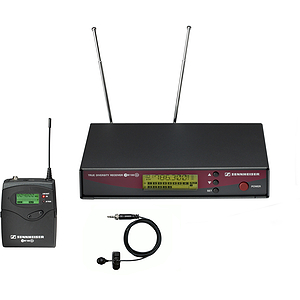

Sennheiser EW122G2 Wireless Mic System for Theater and Presentation

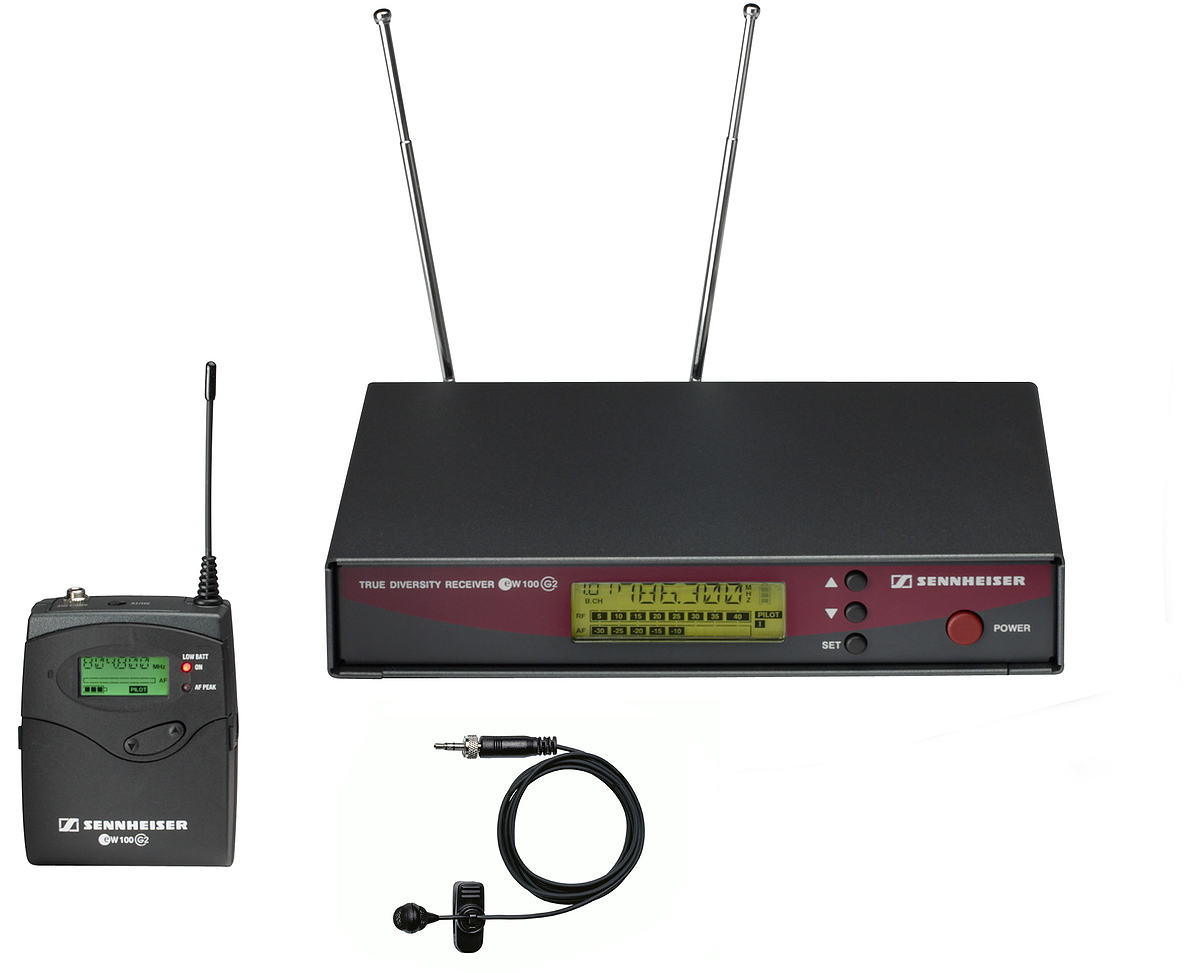

Vocal wireless mic system consisting of Body pack Transmitter w/ME4 cardioid lavalier and rack mountable Receiver

This 100 Series system is ideal for stage productions and presentations. The unobtrusive ME 4 clip-on microphone is virtually invisible and has excellent feedback rejection. The extremely small SK 100 G2 bodypack transmitter as well as the EM 100 rack-mount receiver feature 9 frequency banks with 4 frequency presets each for direct channel selection and are ready for immediate use.

Features

• Autoscan on all receivers for simple and secure frequency selection
• 1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
• Robust metal construction for durability
• Smaller bodypack transmitters and receivers(30% smaller than current EW)
• Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
• New battery concept(AA cells and rechargeable battery accessories)
• Transmitter battery status telemetry on all models
• Audio signal metering on transmitter LCD display
• External charging contacts on 300 and 500 series bodypacks
• XLR jacks on all rack-mountable units(including 100 series)

• Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
• Switchable Frequencies: 1440
• Af Freq Response: 40-18000Hz
• Signal To Noise Ratio: >110dB
• Compander System: HDX HDX
• Pilot Tone: 32768kHz, defeatable

• Operating Time: EK:>8h
• Weight: EM: approx.1100g EK: approx. 158g
• Dimensions: EM: 212x145x38 EK: 82x64x24
• Squelch: Low: 5dBµV Mid: 15dBµV Hi: 25dBµV
• Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
• Current Consumption: EM: approx.200mA EK: approx.130mA
• Power Supply: EM: 10.5-16V DC, 12V nom. EK: 2.4V DC
• Adjacent Channel Rejection: >65dB
• Image Rejection: >70dB
• Sensitivity: <2.5µV
• Intermodulation Spacing: >65dB
• Receiver Principle: EM: True Diversity, EK: Non-Diversity
• Booster DC Supply: None(only via antenna splitter ASP2)

• Weight: SK:approx.158g SKM:approx. 450g SKP:approx. 195g
• Power Supply: 2.4V DC
• Dimensions: SK:82x64x24 SKM:d=50x225 SKP:105x43x43
• Nominal Peak Deviation: Mic:1.8V eff. Line:approx. 2,4Veff
• Operating Voltage: >8h
• Current Consumption :<170mA <250µA
• Rf Outputs: typ. 30mW
• Input Impedance: Mic:10kOhm Line:1MOhm
• Max Sound Pressure Level: approx. 154dB
