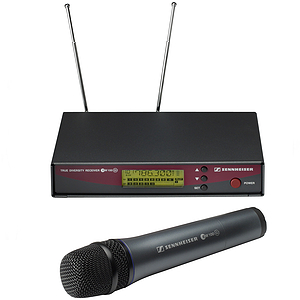

Sennheiser EW145G2 Vocal Wireless Mic System

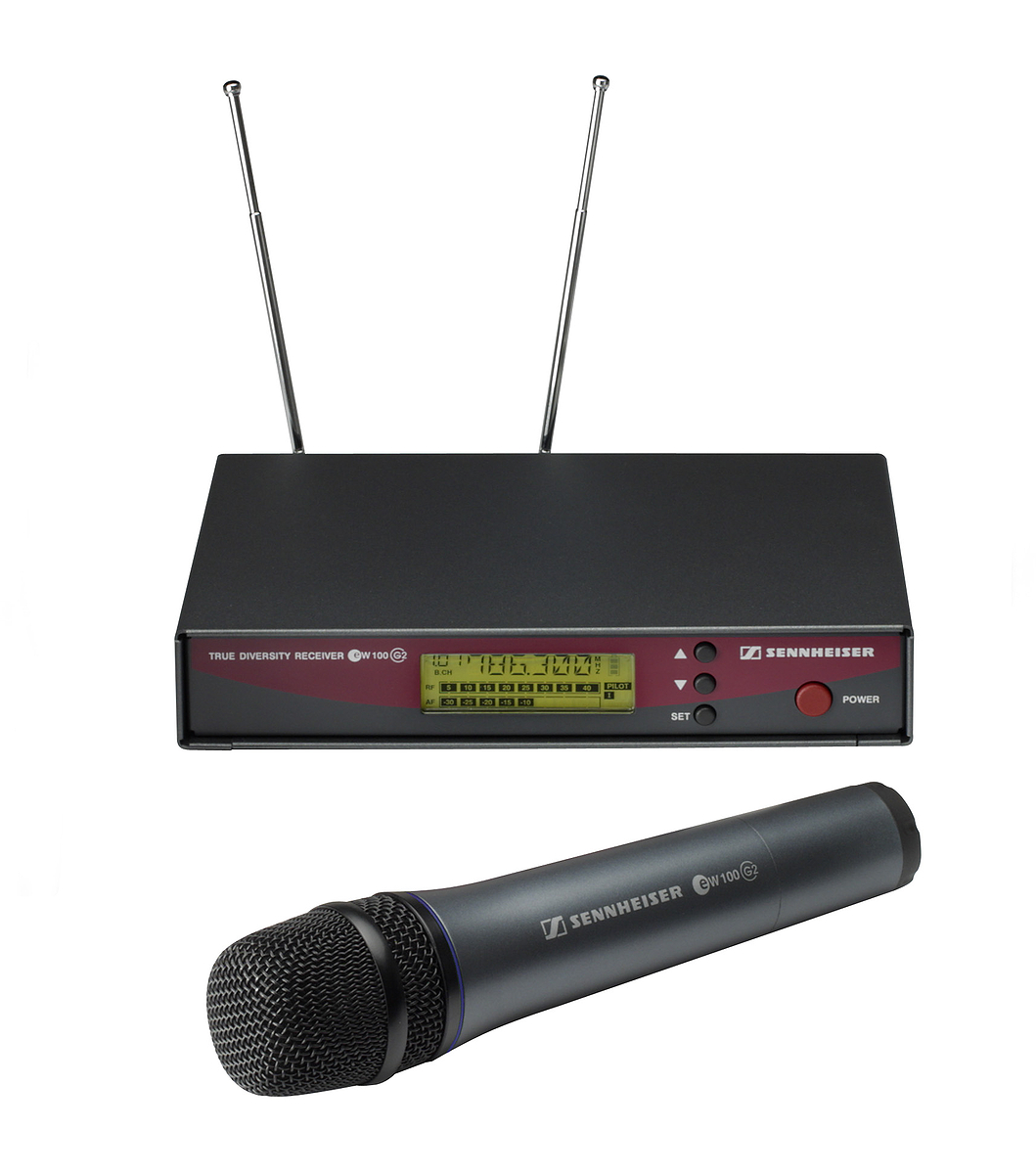

Vocal performance wireless mic system consisting of Handheld Transmitter w/MD845 dynamic super-cardioid capsule and rack mountable Receiver

The EW145G2 has been designed for work on stage. The low feedback SKM 145 G2 handheld transmitter as well as the EM 100 G2 rack-mount receiver feature nine frequency banks with four directly accessible presets each – ready for immediate use.

Features

• Autoscan on all receivers for simple and secure frequency selection
• 1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
• Robust metal construction for durability
• Smaller bodypack transmitters and receivers(30% smaller than current EW)
• Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
• New battery concept(AA cells and rechargeable battery accessories)
• Transmitter battery status telemetry on all models
• Audio signal metering on transmitter LCD display
• External charging contacts on 300 and 500 series bodypacks
• XLR jacks on all rack-mountable units(including 100 series)

• Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
• Switchable Frequencies: 1440
• Af Freq Response: 40-18000Hz
• Signal To Noise Ratio: >110dB
• Compander System: HDX HDX
• Pilot Tone: 32768kHz, defeatable

• Operating Time: EK:>8h
• Weight: EM: approx.1100g EK: approx. 158g
• Dimensions: EM: 212x145x38 EK: 82x64x24
• Squelch: Low: 5dBµV Mid: 15dBµV Hi: 25dBµV
• Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
• Current Consumption: EM: approx.200mA EK: approx.130mA
• Power Supply: EM: 10.5-16V DC, 12V nom. EK: 2.4V DC
• Adjacent Channel Rejection: >65dB
• Image Rejection: >70dB
• Sensitivity: <2.5µV
• Intermodulation Spacing: >65dB
• Receiver Principle: EM: True Diversity, EK: Non-Diversity
• Booster DC Supply: None(only via antenna splitter ASP2)

• Weight: SK:approx.158g SKM:approx. 450g SKP:approx. 195g
• Power Supply: 2.4V DC
• Dimensions: SK:82x64x24 SKM:d=50x225 SKP:105x43x43
• Nominal Peak Deviation: Mic:1.8V eff. Line:approx. 2,4Veff
• Operating Voltage: >8h
• Current Consumption :<170mA <250µA
• Rf Outputs: typ. 30mW
• Input Impedance: Mic:10kOhm Line:1MOhm
• Max Sound Pressure Level: approx. 154dB

• 1440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF output power
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Transmitter and receiver with rugged metal housings
• Receiver features user-friendly menu operation via backlit display
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter and receiver feature "Low Battery" indicators
• Mute function for the transmitter
• Wide range of accessories adapts the system to any requirement

• RF frequency range 518 ..... 866 MHz
• Transmission/receiving frequencies 1440
• Presets 4
• Switching bandwidth 36
• Peak deviation +/- 48 kHz
• Compander HDX
• Frequency response (microphone) 40.....18000 Hz
• Signal-to-noise ratio > 110 dB(A)
• THD, total harmonic distortion < 0,9 %
• In compliance with ETS 300422 , ETS 300445 , CE , FCC
• Antenna connector 2 BNC, 50 Ohm
• Audio-XLR connector 6,3 mm
• Audio output level (balanced) XLR: +18 dBu max
• Audio output level (unbalanced) Jack: +10 dBu max
• Power supply 10,5 - 16 V DC
• Dimensions (Receiver) 212 x 145 x 38 mm
• Weight (Receiver) 1100 g
• RF output power 30 mW
• Power supply 2x 1.5 V battery AA (Mignon)
• Operating time (transmitter) >8 h
• Dimensions (Transmitter) d= 50 mm, l= 225 mm
• Weight (Transmitter) 450 g
• Transducer; Microphone type dynamic
• AF sensitivity 1 mV/Pa
• Sound pressure level (SPL) 154 dB(SPL) max.
• Pick-up pattern super-cardioid

• 1 EM 100 G2 rack-mount receiver
• 1 SKM 145 G2 handheld transmitter (dynamic, super-cardioid)
• 1 MZQ 1 microphone clip
• 1 NT 2-1 power supply unit
• 2 telescopic antennas
• 2 AA batteries
• Operating instructions
