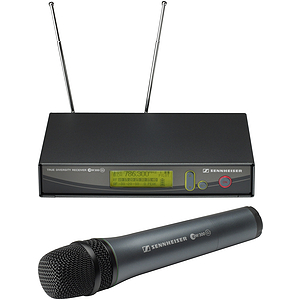

Sennheiser EW335G2 Vocal Wireless Mic System

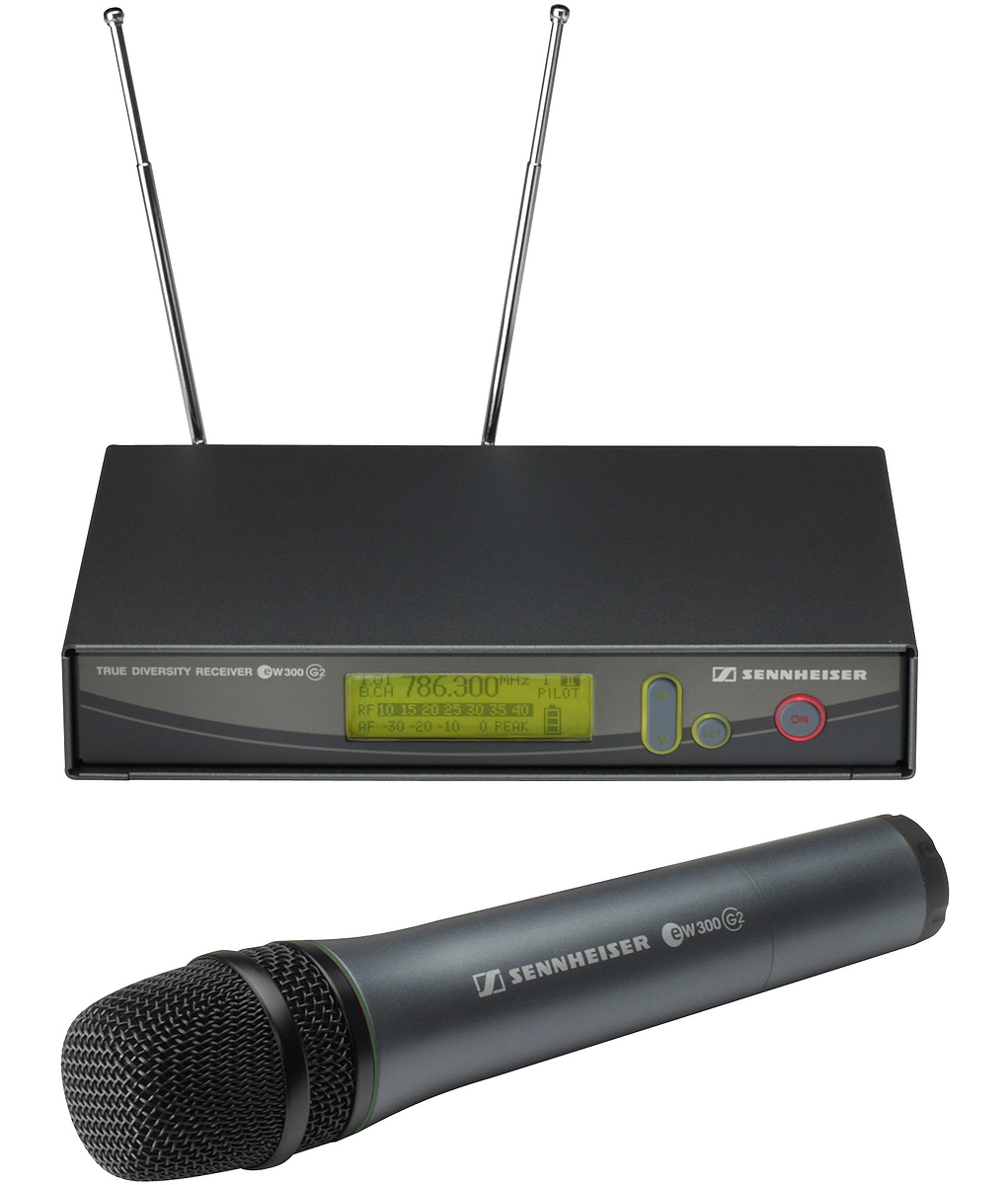

Vocal performance wireless mic system consisting of Handheld Transmitter w/MD835 dynamic cardioid capsule and rack mountable Receiver

The EW335G2 RF wireless system is an ideal choice for vocals and speech applications. It includes the SKM 335 G2 handheld transmitter with dynamic, cardioid microphone head and the EM 300 G2 rack-mount receiver. They feature nine frequency banks with eight directly accessible presets each – ready for immediate use.

Features

• Autoscan on all receivers for simple and secure frequency selection
• 1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
• Robust metal construction for durability
• Smaller bodypack transmitters and receivers(30% smaller than current EW)
• Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
• New battery concept(AA cells and rechargeable battery accessories)
• Transmitter battery status telemetry on all models
• Audio signal metering on transmitter LCD display
• External charging contacts on 300 and 500 series bodypacks
• XLR jacks on all rack-mountable units(including 100 series)

• Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
• Switchable Frequencies: 1440
• Af Freq Response: 40-18000Hz
• Signal To Noise Ratio: >112dB
• Compander System: HDX
• Pilot Tone: 32768kHz, defeatable

• Weight: EM: approx.1100g EK: approx. 158g
• Dimensions: EM: 212x145x38 EK: 82x64x24
• Squelch: Low: 5dBµV Mid: 15dBµV Hi: 25dBµV
• Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
• Current Consumption: EM: approx.200mA EK: approx.130mA
• Power Supply: EM: 10.5-16V DC, 12V nom. EK: 2.4V DC
• Adjacent Channel Rejection: >68dB
• Image Rejection: >72dB
• Sensitivity: <2.5µV
• Intermodulation Spacing: >68dB
• Receiver Principle: EM: True Diversity, EK: Non-Diversity
• Booster DC Supply: None(only via antenna splitter ASP2)

• Weight: SK:approx.158g SKM:approx. 450g SKP:approx. 195g
• Power Supply: 2.4V DC
• Dimensions: SK:82x64x24 SKM:d=50x225 SKP:105x43x43
• Nominal Peak Deviation: Mic:1.8V eff. Line:approx. 2,4Veff
• Operating Voltage: >8h
• Current Consumption :<170mA <250µA
• Rf Outputs: typ. 30mW
• Input Impedance: Mic:10kOhm Line:1MOhm
• Max Sound Pressure Level: approx. 154dB
