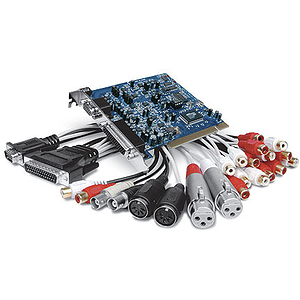

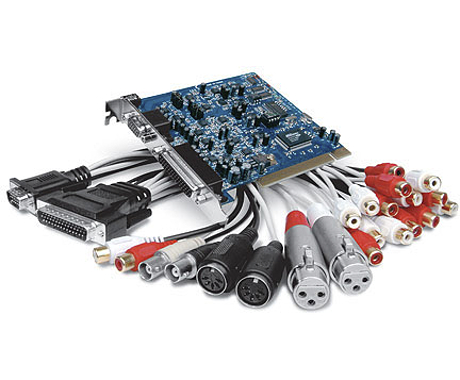

M-Audio Delta 1010LT 10-in/10-out Sound Card w/Audio Interface

The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI card—and at a fraction of the price. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. It’s all on a compact, half-size PCI card with two color-coded breakout cables. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.

Delta is the best-selling audio card line in the world. Delta cards span a wide range of studio configurations, feature sets, operating systems, and price points—and are unparalleled in manufacturing and audio quality at every price point. Our driver compatibility and stability is now legendary in the industry, as is our reputation for updating them to keep you current. Full-duplex architecture allows recording and playback simultaneously, while low-latency drivers and zero-latency hardware monitoring insure that your overdubs will be in sync.

Features:

• 8 x 8 analog I/O
• 2 mic preamps or line inputs
• S/PDIF digital I/O (coaxial) with 2-channel PCM
• SCMS copy protection control
• digital I/O supports surround-encoded AC-3 and DTS pass-through
• 1 x 1 MIDI I/O
• directly drive up to 7.1 surround (bass management software included)
• software controlled 36-bit internal DSP digital mixing/routing
• +4dbu/-10dBV operation individually switched in software
• word clock I/O for sample accurate device synchronization
• Apple G5 compatible
• includes Maximum Audio Tools software bundle

Specifications:

• frequency response: - 22Hz-22kHz, -0.2,-0.4dB @48kHz
  - 22Hz-40kHz, -0.2,-0.7db @96kHz
• dynamic range (A-weighted measured): 101.5dB (D/A) 99.6dB (A/D)
• THD: < 0.002% (A/D and D/A)
• size/weight: 5-1/8” x 7/8” x 5-3/8”; 0.25 lbs.
• 36-bit Embedded DSP: All Delta cards contain a 36-bit embedded DSP enabling a software-driven patchbay/router for all analog and digital I/O—all with extremely fast throughput for low-latency software monitoring. A single unified control panel provides settings for clock and sample rates, buffer sizes, individual signal levels for every input and output, adjustable +4dBu/-10dBV pad conrols and digital I/O control on up to four installed Delta cards. All controls are also easily accessible through most professional audio software applications for seamless integration and operation.

Compatibility:

• ASIO 2
• MME
• Sound Manager
• OMS
• DirectX
• GSIF
• Mac OS X Core Audio / Core MIDI

Minimum System Requirements (PC):

• Windows 98SE / Me / 2000 (SP4) / XP (SP1)
• For 96kHz operation: Pentium III 500mHz w/ 128MB RAM
• For 48kHz operation: Pentium II 400 w/ 64MB RAM

Minimum System Requirements (MAC):

• G3/G4* 500MHz
• OS 9.2.2, 128MB RAM; OS X 10.1.5, 10.2.6 or greater, 256MB RAM
• OMS 2.3.8 for MIDI under OS 9.2.2
• * G3/G4 accelerator cards not supported; OS 10.3 required for Dolby Digital and DTS pass-through with Apple DVD Player
