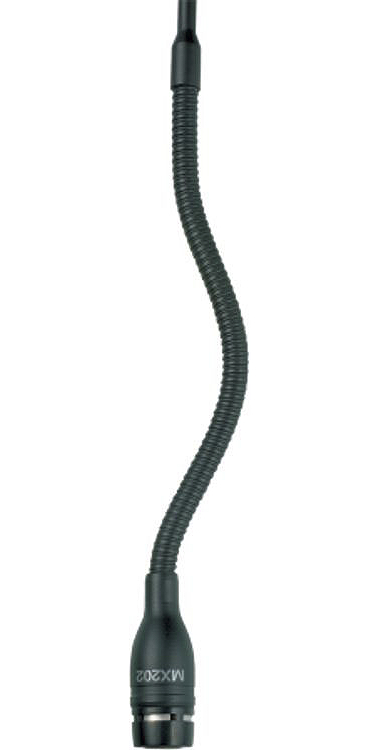

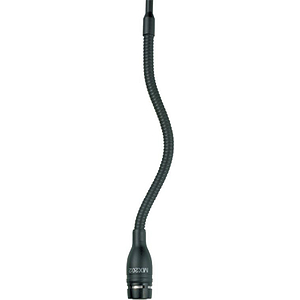

Shure MX202BP/C Microflex Overhead Cardioid Mini Condenser Microphone - Black

It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or white finishes, and with in line or plate mount preamps, MX202 Microflex overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid, supercardioid and omnidirectional condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable. The preamp options available offer easy installation in ceilings or microphone stands, and when combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with a minimum of RF interference or electromagnetic hum.

MX202BP/C Features:

• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
• Cardioid Polar Pattern - Interchangeable with Supercardiod and Omnidirectional cartridges
• Balanced, transformerless output for increased immunity to noise over long cable runs
• Includes 30' Cable and Plate-Mounted Preamp
• White or Black finish that blends unobtrusively with most surroundings

• 50 to 17,000 Hz

• 180 ohms actual (EIA rated at 150 ohms)

• Cardioid: -35.0 dBV/Pa (17.8 mV)
• Supercardioid: -33.5 dBV/Pa (21.1 mV)
• Omnidirectional: -27.5 dBV/Pa (42.2 mV)
• All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL

• Cardioid: 124.2 dB
• Supercardioid: 122.7 dB
• Omnidirectional: 116.7 dB
• All values +6 dB at 0 gain

• Cardioid: 28.0 dB SPL
• Supercardioid: 26.5 dB SPL
• Omnidirectional: 20.5 dB SPL

• Cardioid: 66.0 dB
• Supercardioid: 67.5 dB
• Omnidirectional: 73.5 dB

• 96.2 dB
• 100 dB at 0 gain

• 45.0 dB minimum

• -6.0 dBV (0.5 V)
• -12 dBV at 0 gain

• Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.

• 11 to 52 Vdc phantom, 2.0 mA

• Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
• Relative Humidity: 0 to 95%
