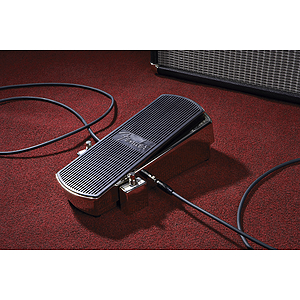

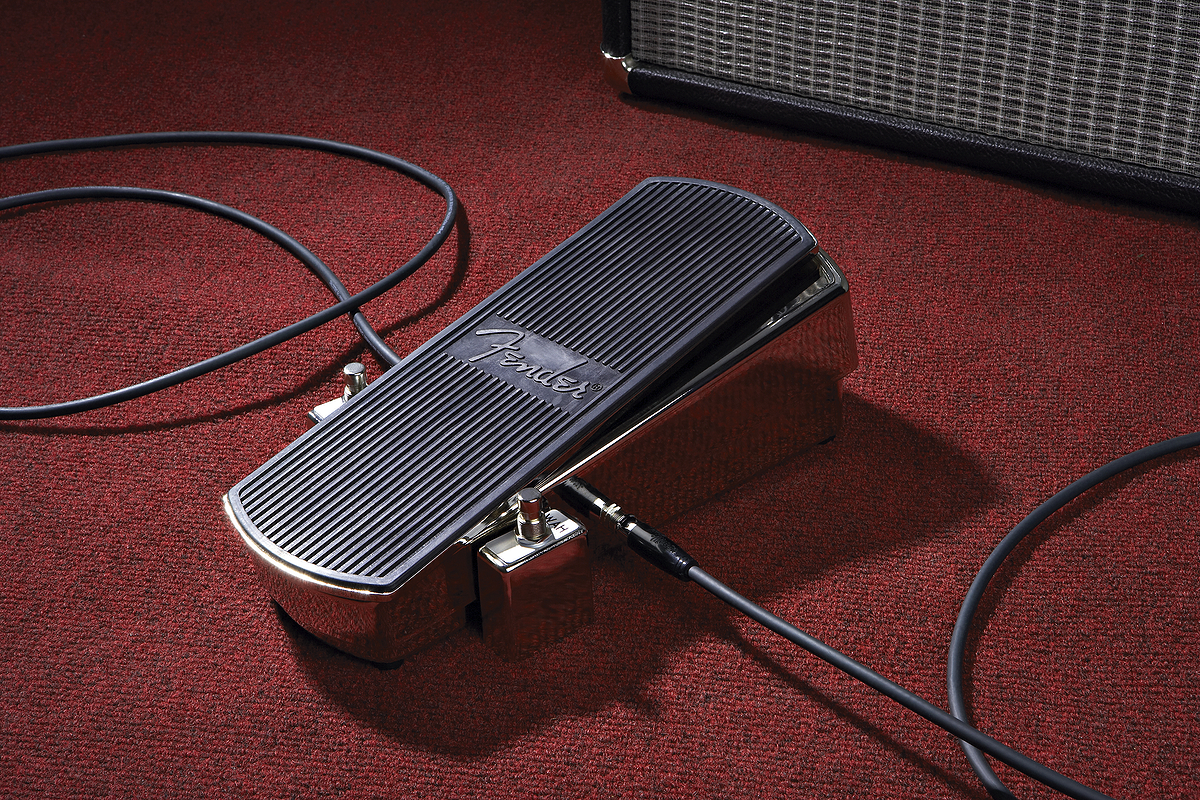

Fender® Fuzz-Wah Pedal

Set the controls for the heart of the funk!

The Fender Fuzz-Wah puts the freak-out at your feet and the fuzz in your beat, all in one rugged, smart-looking pedal. Tilt that baby back and forth for the most groovalicious wah you ever laid ears on; rotate it left to right for fuzz that can easily level large metropolitan areas. Switch each effect on and off and switch the order of the effects for two distinct sounds. Bottom-panel fuzz volume control lets you boost volume or simply match your guitar’s volume when the fuzz is off.

Pedal Controls:

• Wah Control—Tilt the pedal back and forth
• Fuzz Control—Rotate the pedal left and right. Bottom Panel
• Effects Order—Switches the order of the effects in the signal path to provide two distinct sounds
• Fuzz Volume—Adjusts the volume level of the Fuzz effect so that you can match the volume level of your guitar when Fuzz is turned off

Features:

• Fuzz Switch—Turns the Fuzz effect on-off
• Wah—Turns the Wah effect on-off
• Input Jack—Plug your guitar (or other audio source) in here. Un-plug the input plug from this jack to turn off the device and save power (very important) when not in use.
• Output Jack—Connect to the input of your amplifier (or other audio device)
• 9V Battery—Open the battery compartment on the bottom of the unit by removing the thumb screw
• DC Input Jack—Plug in a AC- 9V DC adaptor (Not Included, see specifications) into this jack to eliminate the need for batteries

Specs:

• Input Impedance: 1MOhm
• Nominal Input Level: –20dBV
• Output Impedance: Fuzz —> Wah = 1kOhm; Wah —> Fuzz = 50kOhm
• Nominal Output Level: –20dBV
• Power Requirements: 9VDC (center pin = negative); 10mA Minimum
