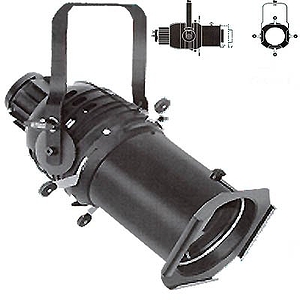

Altman 360Q 6" Ellipsoidal Spotlight, 6x12 model
Rollover image for closeup

Altman 360Q 6" Ellipsoidal Spotlight, 6x12 model

Item #: MC.360Q

List Price: $369.00
Our Price:
$315.99 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Altman

Ellipsoidal Spotlight. Made by Altman. (MC.360Q)

Free Shipping on this item, and most items in same order also ship free

Temporarily Out of Stock -- Notify Me when Back in Stock

Found in:  Stage Lighting Ellipsoidals



The legendary Altman 360Q is a compact, rugged ellipsoidal spotlight which produces a high intensity sharp or soft edged beam

This lightweight luminaire is outfitted with an efficient, specially faceted reflector specifically designed for the new generation of 575-watt tungsten halogen lamps. The reflector has over 700 mirror polished surfaces which optimize the optical system for greater light output and a sharper, more controlled focus. Four adjustable integral stainless steel framing shutters provide beam shaping ability and the pattern slot and holder provide the ability to project visual images. While primarily designed for theatre and studio applications, the 360Q Series is also useful in displays, show windows, museums and nightclubs where precision controlled accenting is desirable.

Features include:
• Heat-resisting plano convex lenses
• Aluminum die-cast and sheet metal construction
• Axially mounted medium two-pin socket
• Specular, mirror polished multi-faceted aluminum reflector
• Three 36" Teflon lead wires
• Plated steel color frame included
• Safety cable with spring clip included
• UL and cUL listed for 750 watts
Power plug not included
GLA Lamp not included

Specifications:

  • 6 x 12 MODEL: Beam angle: 11 degrees, Field angle: 26 degrees
  • Candlepower: 164,925 Candela
  • Housing: Die-cast aluminum and sheet steel construction.
  • Materials: Construction employs all corrosion-resistant
  • materials and hardware.
  • Yoke: Rigid flat steel with dual locking dog handles.
  • Reflector: Alzak aluminum, elliptical design.
  • Lenses: Pyrex glass.
  • Socket: Altman G9.5 medium two-pin, axially
  • mounted, with blinder/heat shield, tool free relamping.
  • Rating: 120/240 volts AC/DC operation, 6.3/3.1
  • amps, 750 watts maximum.
  • Cable: 36" Teflon leads encased in black fiberglass
  • sleeving. Hi-temp rubber cable optional, up to 25'.
  • Shutters: Four provided, stainless steel, fully adjustable.
  • Handles provided with heat resistant knobs.
  • Access Door: Hinged, removable without tools,
  • allowing access to lens and reflector.
  • Focusing, Lamp: Fully adjustable.
  • Focusing, Fixture: Lens movement adjustable with
  • locking thumb screw.
  • Accessories: Factory installed iris available. Accepts
  • drop-in pattern holder and standard 7 1/2" accessories.
  • Finish: Black epoxy sandtex, electrostatically applied.
  • Weight: Approx; 15 lbs. (6.75 kg.)
