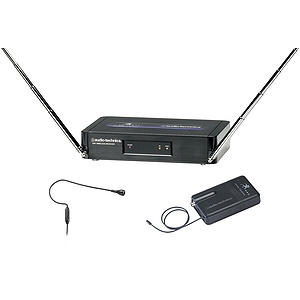

Audio Technica ATW-251/H92-T8 Wireless VHF Head-Worn Microphone System (170.905MHz)

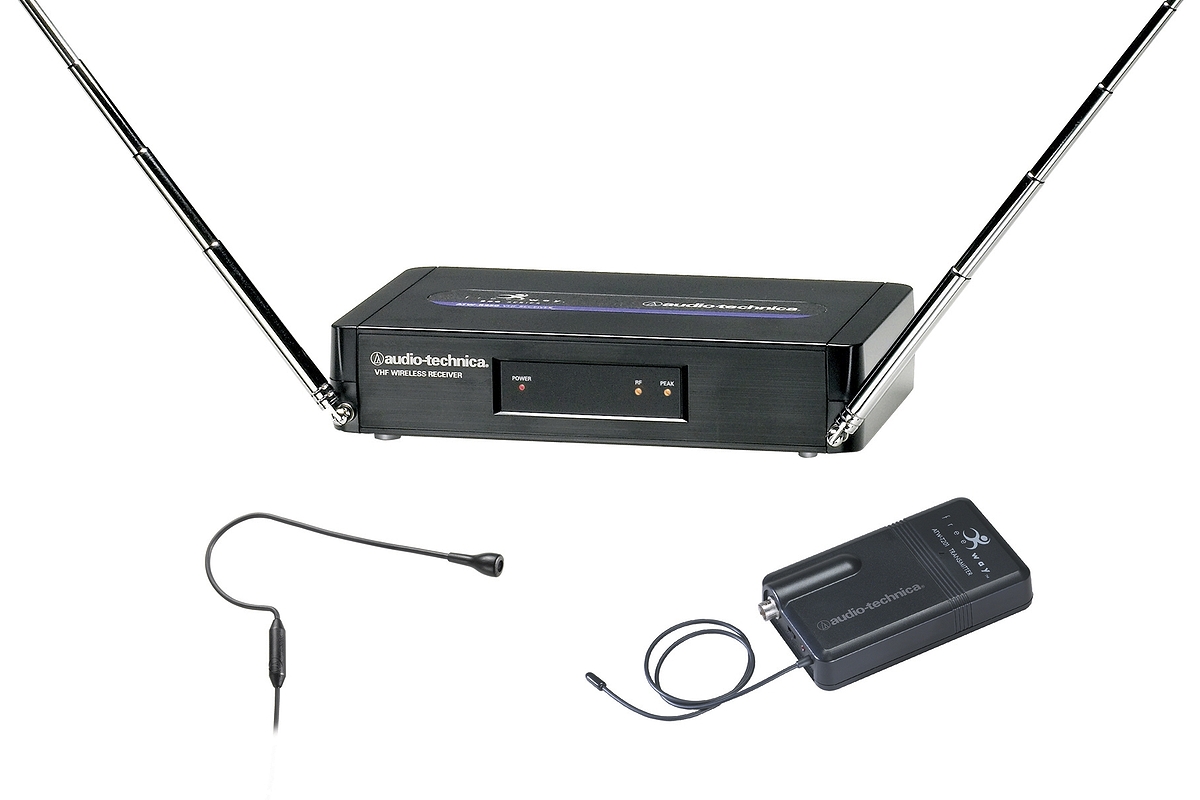

The Audio-Technica ATW-251/H92-T8 (170.905MHz) includes: a ATW-R250 receiver, ATW-T201 transmitter, and a PRO 92cW headworn black microphone.

Audio-Technica's Freeway 200 Series Wireless Systems are designed to provide reliable performance, easy setup and clear, natural sound quality. Each 200 Series professional VHF wireless system includes a receiver and either a bodypack transmitter or a handheld microphone/transmitter on a specific crystal-controlled frequency. A novel dipole antenna system on the receiver improves operation by providing a ground element in addition to the usual signal element.

Features

• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
• Power, RF, and AF Peak indicators
• Volume control, ¼” output jack and space-saving power supply
• Rugged unidirectional dynamic element on handheld microphone/transmitter
• Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
• Professional locking connector on UniPak® body-pack transmitter
• Available in 7 system configurations

The ATW-R250 receiver is a compact wireless receiver for the 200 series Freeway system. The surface mounted unit features 8 selectable VHF frequencies, and diversity switching antennas. The combination of VHF, diversity operation results in fewer drop outs and noise. The rear provides both balanced and unbalanced output connections for further flexibility. It comes with a unique space saving power supply, perfect when multiple AC power supplies are employed as part of a system. The ATW-R250 also offers squelch and volume controls, 1/4 output jack, along with AF Peak, RF and Power indicator lights.

The ATW-T201 Body Pack Transmitter is a VHF bodypack transmitter for the Freeway 200 series wireless microphone system also. The transmitter accommodates compatible lavalier and head-worn microphones as well as instrument cables. Additional features include switchable RF power settings for increasing range whenever necessary.

The PRO 92cW wireless omnidirectional condenser headworn microphone offers a natural, smooth frequency response optimized for vocal articulation. The mic features a small condenser capsule; a lightweight, contoured earpiece; and a flexible boom that is easily repositioned for a comfortable fit. Terminated to fit Audio-Technica wireless systems, the PRO 92cW is a great headworn mic.

OVERALL SYSTEM SPECIFICATIONS

• Operating Frequency - VHF high band, 170.905MHz
• Number of Channels - Fixed channel
• Frequency Stability - ±0.005%
• Modulation Mode - FM
• Maximum Deviation - ±15 kHz
• Operating Range - 200' typical
• Operating Temperature Range - 40° F (4° C) to 110° F (43° C)
• Frequency Response - 80 Hz to 13 kHz

RECEIVER SPECIFICATIONS

• Receiving System - Non-diversity, single-channel, dual antenna system
• Image Rejection - 50 dB minimum
• Signal-to-noise Ratio - 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
• Total Harmonic Distortion - <=1% (10 kHz deviation at 1 kHz)
• Sensitivity - 20 dBµV for 60 dB S/N (IEC-weighted)
• Audio Output - 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
• Output Connector - 1/4" TS ("mono") phone jack
• Power Supply - 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
• Dimensions - 7.48" (190.0 mm) W x; 1.65" (42.0 mm) H x; 5.12" (130.0 mm) D
• Net Weight - 11.0 oz (311 g)
• Accessory Included - Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS

• RF Power Output - 10 mW High position, 2 mW Low position, typical
• Spurious Emissions - Under federal regulations
• Dynamic Range - >=90 dB, A-weighted
• Input Connections - High impedance, low impedance, bias
• Battery - 9V (NEDA type 1604) alkaline, not included
• Current Consumption - 30 mA typical
• Battery Life - Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
• Dimensions - 2.56" (65.0 mm) W x; 4.33" (110.0 mm) H x; 1.00" (25.4 mm) D
• Net Weight - 2.8 oz (78 g) (without battery)

HANDHELD TRANSMITTER SPECIFICATIONS

• RF Power Output - 10 mW High position, 2 mW Low position, typical
• Spurious Emissions - Under federal regulations
• Dynamic Range - >=90 dB, A-weighted
• Microphone Element - Dynamic unidirectional
• Battery - 9V (NEDA type 1604) alkaline, not included
• Current Consumption - 30 mA typical
• Battery Life - Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
• Dimensions - 9.50" (241.3 mm) long, 2.10" (53.3 mm) maximum diameter
• Net Weight - 12.7 oz (360 g) (without battery)
• Accessory Included - AT8456a Quiet-Flex™ stand clamp
