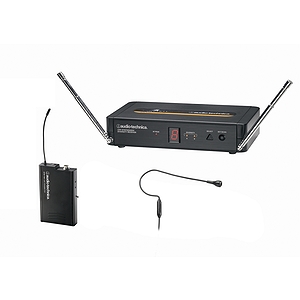

Audio-Technica ATW-701/H92 Wireless Headworn Microphone System - Black Mic

Item #: MC.ATW-701-H92

List Price: $579.95
Our Price:
$317.99 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Audio-Technica

Wireless Microphone System. Made by Audio-Technica. (MC.ATW-701-H92)

Permanently Out of Stock
We do not expect this item to ever be in stock again, and cannot provide a timeframe for when or if this might happen.

Possible alternatives are shown at right

Found in: Stage Headset Condenser Mics, Vocal Wireless Systems For The Stage

Goes With -- Check a box to also include that item in cart

Rockson Speaker Cable - 50-Foot w/ 1/4" jacks
$16.99

Samson Q4 CL Cardiod Dynamic Handheld Mic Pack
$29.00

MBT Rack 8-channel Power Center
$33.99

Adam 16-Gauge 50' Speaker Cables
$30.99

Raxxess Rack Screws and Washers
$23.10

Hot Line 16-Gauge Speaker Cable - 3 Feet, 1/4" plugs
$13.99

Description
Customer Reviews

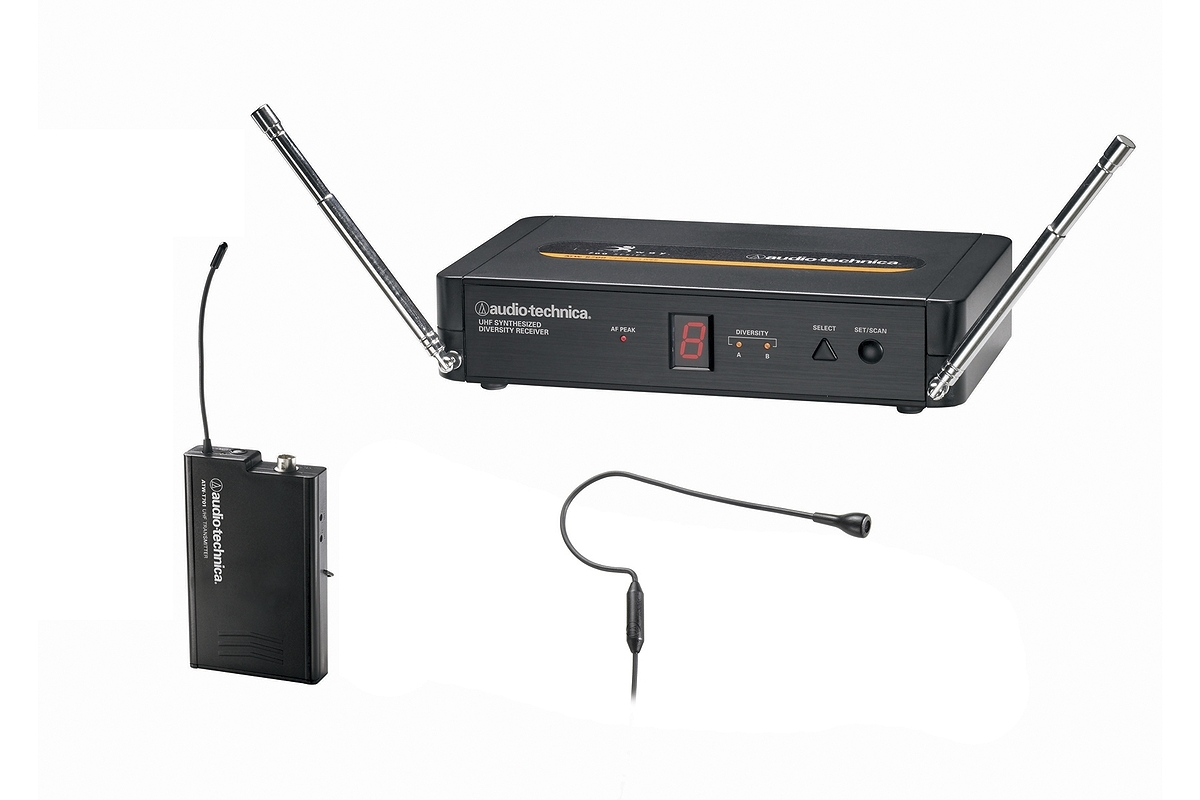

Audio-Technica's ATW-701/H92 Wireless Body pack System incorporates the 700 Series Freeway wireless system, which delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock squelch and more.

Includes

ATW-R700 Receiver
ATW-T701 UniPak Transmitter
PRO 92cW Headworn Microphone (black)

Features:

8 selectable frequency-coordinated UHF channels
Use up to 8 simultaneous systems-all channels compatible
Automatic frequency scanning
Diversity operation for increased range/reliability
LED Channel display plus Antenna, AF Peak indicators
Balanced XLR and unbalanced 1/4" output connectors
Tone Lock™ squelch system eliminates interference when transmitter is off
UniPak® transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation
Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials® microphones and cables

OVERALL SYSTEM SPECIFICATIONS



Operating Frequencies	UHF band, 542.125 MHz to 561.250 MHz

Number of Channels	8

Frequency Stability	±0.005%, Phase Lock Loop frequency control

Modulation Mode	FM

Maximum Deviation	±25 kHz

Operating Range	200' typical

Operating Temperature Range	40° F (4° C) to 110° F (43° C)

Frequency Response	100 Hz to 12 kHz

RECEIVER SPECIFICATIONS



Receiving System	Antenna-switching diversity

Image Rejection	55 dB minimum

Signal-to-noise Ratio	>80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz

Total Harmonic Distortion	<=1% (10 kHz deviation at 1 kHz)

Sensitivity	25 dBµV (S/N 60 dB at 10 kHz deviation, IEC-weighted)

Audio Output	Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation) Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)

Output Connectors	Unbalanced: 1/4" TS ("mono") phone jack Balanced: XLRM-type

Power Supply	100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode, external power supply

Dimensions	7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D

Weight	12.9 oz (365 g)

Accessory Included	Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS



RF Power Output	High: 10 mW; Low: 5 mW

Spurious Emissions	Under federal regulations

Dynamic Range	>100 dB, A-weighted

Input Connections	High impedance, low impedance, bias

Batteries	Two 1.5V AA alkaline (not included)

Current Consumption	High: 140 mA; Low: 130 mA, typical

Battery Life	Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern

Dimensions	2.56" (65.0 mm) W x 4.13" (105.0 mm) H x 0.73" (18.5 mm) D

Net Weight	2.8 oz (80 g)
