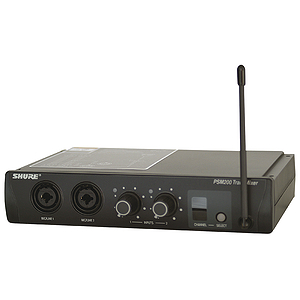

Shure PSM 200 Wireless Personal Monitor System with Mix Control, P2TRE2

The Shure PSM 200 model P2TRE2 wireless personal monitor system with mix control includes:

- P2R Hybrid Bodypack Receiver
- P2T Wireless TransMixer
- Clear SCL2 Sound Isolating Earphones

Whether you're playing live or rehearsing, you need to hear yourself to be your best. That's what monitoring is all about. Yet some performers still struggle with booming floor wedge monitors and loud stage volume. Introducing the PSM®200 - the personal monitoring break through that performers have been waiting for. Featuring smart, versatile components that grow with you as your needs change, the PSM 200 series is a practical alternative to floor wedges for performers who want to start out In Ear and stay there.

PSM 200 Features

• Can operate as a wired or wireless bodypack, or both simultaneously
• Frequency locator
• Built-in headphone limiter
• Integrated cable management
• High-impact plastic chassis
• 1/4" Line inpit jack with high/low gain switch

Operating Controls

• Volume knob
• Frequency select

LED Indicators

• Power
• RF reception
• Frequency
• Limiter
• Low Battery

PSM 200 Specifications:

RF Carrier Frequency Range

518­-865 MHz (country dependent)

Operating Range

100 m (300 ft.) under optimal conditions

Audio Frequency Response

30 Hz to 12 kHz (+/­3 dB); earphone dependent

Total Harmonic Distortion (1 kHz)

<1% typical (Ref. +/- 35 kHz deviation)

Modulation

FM +/- 35 kHz Deviation (Nominal)

Signal-to-Noise Ratio

80 dB typical (A-weighted)

Operating Temperature

-7 degrees C to +49 degrees C (+20 degrees F to +120 degrees F)

The P2R Hybrid Bodypack Receiver is the world's first bodypack receiver to function as a wired receiver, a wireless receiver, or both at the same time. This and other unique features, along with excellent sound quality, make the P2R an exceptional value.

P2R Features
• Can operate as a wired or wireless bodypack, or both simulaneously
• Frequency locator
• Built-in headphone limiter
• Integrated cable management
• High-impact plastic chassis
• 1/4" Line inpit jack with high/low gain switch
Operating Controls
• Volume knob
• Frequency select
LED Indicators
• Power
• RF reception
• Frequency
• Limiter
• Low Battery


P2RSpecifications:

RF Sensitivity

­109 dBm typical

Squelch Threshold

­102 dBm typical

Antenna

Attached Whip

Audio Input Connector

Connector Type: 1/4-inch Mono

Impedance: 1 megohm

Maximum Input Level: LO = +0 dBu; HI = ­10 dBu

Frequency Response: 30 Hz to 20 kHz (+/­3 dB); earphone dependent

Power Requirements

9 V alkaline battery, Duracell® type MN1604 recommended

Battery Life

Volume Dependent

Wired (RF Off): 6 hours

Wireless (RF On): 4 hours

Audio Output Connector

1/8 inch (3.5 mm)

Minimum Load Impedance

8 ohms

Net Weight

100 g (3.52 oz.), less battery

Overall Dimensions

122 mm x 73 mm x 32 mm (4.809 in. x 2.875 in. x 1.251 in.)

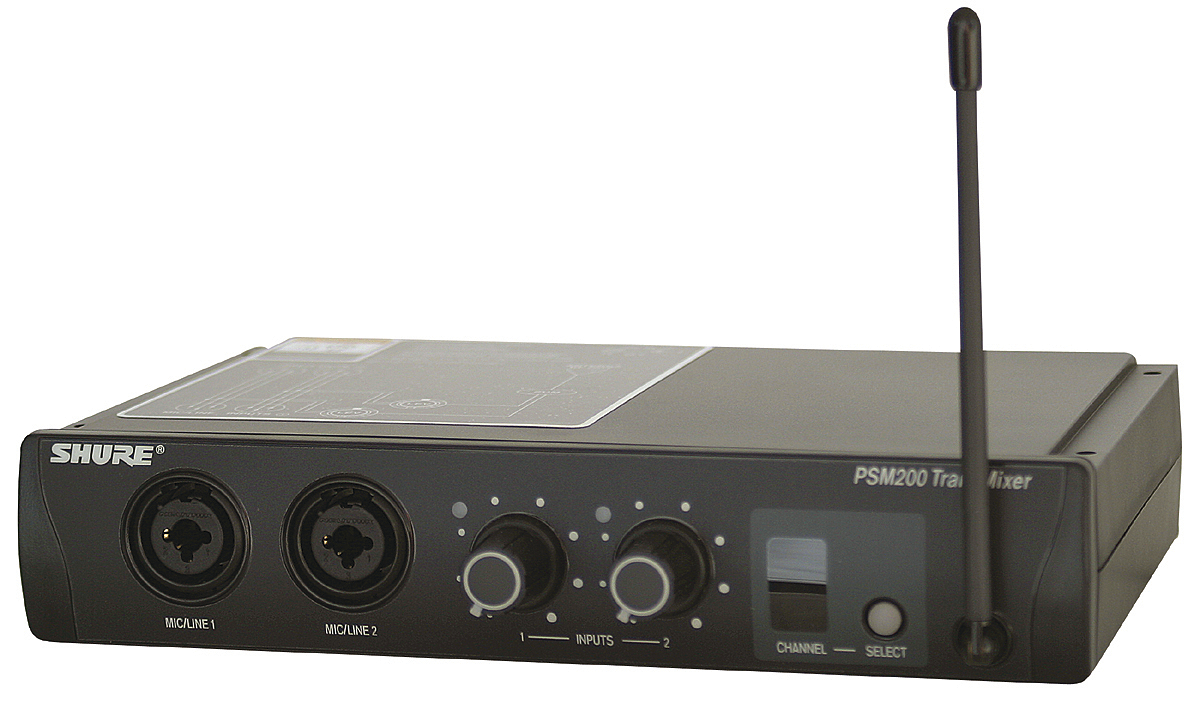

The P2T Wireless TransMixer is another breakthrough design for personal monitoring. It allows the user to connect two line-level or mic-level inputs directly into the transmitter. The two signals can then be mixed independently. You can connect microphones or instruments directly to the inputs, or use line outputs from a mixing console. In short, no matter what the output device, you can probably plug it into the TransMixer.

P2T Features
• Built-in audio limiter
• Front mounted antenna
• Two mic/line input channels for mix control
• 1/2 Rack space
Operating Controls
• Input level control
• Frequency select
LED Indicators
• Tri-color input level
• Frequency
Inputs
• Two Mic/line, XLR-1/4 in. combo input channels
Outputs
• Two XLR split outputs


P2T Specifications:

RF Output Power

30 mW (+15 dBm) typical conducted (country dependent)

Modulation Limiter

Internal peak limiter (>10:1 hard knee compression)

Antenna

1/4 Wavelength, semi-rigid, PCB Mount

P2T Audio Input

Connector Type: XLR/1/4-inch combo

Configuration: electronically balanced

Actual Impedance: 1 kilohm

Nominal Input Level: ­25 dBu @ 1/2 volume (12 o'clock)

Maximum Input Level: ­5 dBu @ 1/2 volume (12 o'clock)

Pin Assignments:

XLR: 2=hot; 3=cold, 1=ground

1/4: Tip = hot, Ring = cold, Sleeve=ground

Phantom Power Protection? Yes: Up to 52 Vdc

Current

170 mA maximum

Dimensions

220 mm x 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)

Net Weight

370 g (13 oz.)

P2T Audio Outputs Passive connection parallel with input.

Connector Type: XLR

Configuration: electronically balanced

Pin Assignments: 2 = hot ; 3 = cold, 1 = ground

Phantom Power Protection? Yes: Up to 52 Vdc

Power Requirements

Operating voltage 12-18 Vdc

Supplied with one of the following external power supplies:

Model PS20: 120 VAC, 60 Hz input.

Model PS20E, Model PS20UK: 230 VAC, 50/60 Hz input.

CL2 Sound Isolating Earphones

Single Dynamic Microdriver technology delivers full range sound and isolation from outside noise.

Specifications:
• Frequency Range: 22Hz - 17.5kHz
• Sensitivity (at 1 kHz): 105 dB SPL/mW
• Weight: 30g (1oz)
• Impedance (at 1 kHz) 16 ohms
• Output Connector: Gold-plated stereo, 3.5 mm (1/8-inch) phone plug
• Cable Length: 1.57 m (62 inches)
