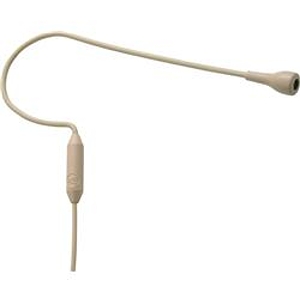

Audio-Technica PRO 92cW-TH Omnidirectional Condenser Headworn Microphone - Beige

Audio-Technica's PRO 92cW-TH (Beige) omnidirectional condenser headworn microphone offers a natural, smooth frequency response optimized for vocal articulation. The mic features a flexible boom design that is easily repositioned for a comfor table fit. Terminated to fit Audio-Technica wireless systems, the PRO 92cW is available in black (PRO 92cW) or beige (PRO 92cW-TH).

Operation: The flexible design of the PRO 92cW enables it to be worn on either the left or right ear. Position the lightweight contoured earpiece around your ear, so that the boom extends from the top of your ear. Remove the PRO 92cW and bend a gentle curve in the microphone’s boom to follow the contour of your face. Again, hook the earpiece around your ear, adjusting the earpiece and boom as needed to achieve a secure, comfortable fit, so that the PRO 92cW is not dislodged by shaking your head.

The PRO 92cW has a large acoustical sweet spot; experiment with placement near the corner of your mouth for optimal performance. A clothing clip is provided, allowing the PRO 92cW to remain securely in place without the weight of the cable pulling on the headset. To install the clothing clip, slip the cable into the snap-on connector and attach the clip to clothing, leaving enough slack on the PRO 92cW side of the clip to allow for free, comfortable motion.

Specifications:

• ELEMENT - Condenser
• POLAR PATTERN - Omnidirectional
• FREQUENCY RESPONSE - 20-20,000 Hz
• OPEN CIRCUIT SENSITIVITY - –45 dB (5.6 mV) re 1V at 1 Pa
• MAXIMUM INPUT SOUND LEVEL - 116 dB SPL, 1 kHz at 1% T.H.D.
• SIGNAL-TO-NOISE RATIO - 60 dB, 1 kHz at 1 Pa
• CURRENT CONSUMPTION - 0.3 mA typical @ 5V
• VOLTAGE RANGE - 1.5-9V
• WEIGHT
  • MIC AND BOOM - 4.0 g (0.14 oz)
  • MIC, BOOM, CONNECTOR AND CABLE - 24.0 g (0.84 oz)
• DIMENSIONS
  • MICROPHONE - 0.85" (21.7 mm) long, 0.36" (9.2 mm) diameter
  • BOOM - 4.33" (110.0 mm) long, 0.09" (2.4 mm) boom diameter
  • CABLE LENGTH - 55" (1.4 m)
• CABLE TERMINATION - Terminated with locking 4-pin connector for use with A-T UniPak® body-pack transmitters
• ACCESSORIES FURNISHED - Windscreen; clothing clip; carrying pouch
