Radial Engineering Passive Stereo Multimedia Direct Box

Radial Engineering Passive Stereo Multimedia Direct Box

Item #: MC.R8001115

List Price: $200.00
Our Price:
$169.99

No Rating Unrated ( Be the first to review this item )

by Radial Engineering

Passive Direct Box. Made by Radial Engineering. (MC.R8001115)

Free Shipping on this item in orders above $199

In Stock
Usually ships within 3-4 business days

Found in:  Stage Direct BoxesStudio Direct Boxes



Radial 'Pro' Series - Built with the same dedication and commitment to excellence as all Radial products, the Pro series now offers the best price/performance ratio in the industry!


The Radial ProAV1 and ProAV2 are passive direct boxes specifically developed with the audi-video integrator in mind. The ProAV1 features a variety of stereo inputs that are merged via a resistive mixer to mono, greatly simplifying signal management and the ProAV2 has full two-channel stereo functionality.

To eliminate the need for various adaptor, a 'Swiss Army' array of connections are provided. including 1/4" for instruments, RCA and 1/8" connectors for consumer electronics and computers and a +4dB XLR input(s) for professional systems. Front panel connectors can also be used as thru-puts to allow multiple patch points.

Custom wound transformers are employed that are able to withstand exceptionally hot levels while maintaining linearity from 20Hz to 18.5kHz. The resulting smooth Bessel curve is warm and natural, making the AV1 particularly adept at handling digital sources that can sound harsh. Transformer isolation adds the benefit of eliminating ground loops that cause audio hum and buzz and video hum bars or snow.

The ProAV1 is ideal for events that interlace audio with video where music sources can include iPods, CD players and video decks. The ProAV2 stereo version trades some of the connectivity features for it's full dual-channel stereo operation. Both ProAV1 and ProAV2 will be welcome additions to the AV technician's tool box.

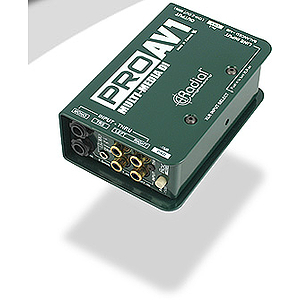

ProAV1 Setup (see image):

Plug your audio-video device into the ProAV1 using any number of connection options from XLR to 1/8" mini connector. L & R Stereo inputs are paralleled to the unused L & R input connectors so you can use these as thruputs to connect to other devices or destinations. Stereo inputs are summed to mono at the XLR output. See the user manual for complete details about all the connection possibilities. A -15dB pad is provided to tame hot signals and the ground lift eliminates hum and buzz caused by ground loops.

ProAV2 Applications:

  • Computers
  • CD players
  • DVD and video players
  • iPod and MP3 players
  • Cassette decks
  • Balanced line level sources
  • Keyboards, acoustic guitars, bass, active instruments
  • Drum machines, digital pianos, DJ mixers


ProAV2 Direct Box Features:
  • Pro 'Swiss Army knife' direct box for multi-media
  • Easy to use passive ultra-quiet design
  • Elimiates ground loops causing hum and buzz
  • Handle huge transients without distortion
  • 1/8", RCA, 1/4" Inputs
  • +4dB XLR Outputs
  • Custom-wound transformers
  • Stereo


ProAV2 Direct Box Specs:
  • Active/Passive: Passive
  • Analog Input Types: 2 x 1/4" TS, 2 x RCA, 1 x 1/8" TRS
  • Analog Inputs: 5
  • Analog Output Types: 2 x XLR
  • Analog Outputs: 2
  • Total Channels: 2
  • Manufacturer Part Number: R800 1115
