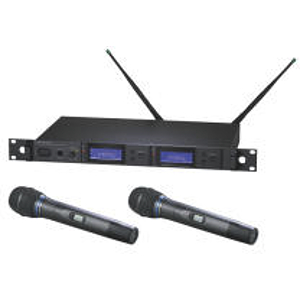

Audio-Technica 5000 Series AEW-5255D Dual Handheld Condenser Mic Wireless System - D-band Frequencies

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments, Audio-Technica's dual-receiver Artist Elite® 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

With two independent True Diversity receivers in a single full-rack housing, the 5000 Series conserves rack space while providing outstandingly reliable and flexible performance. Two hundred selectable channels are offered in each of two available UHF bands. Receivers may be linked to form a complete system in which the built-in IntelliScan capability automatically determines and sets the best available frequencies on all linked receivers. Equipped with Ethernet ports, the 5000 Series receiver allows computer management and control (software included).

Audio-Technica's 5000 Series AEW-5255C Dual Handheld Condenser Mic Wireless System comes with an AEW-R5200 dual receiver and two AEW-T5400 cardioid condenser microphone/transmitters, and works on UHF D-Band frequencies: 655.500 - 680.375 MHz

Features:

• Two independent receivers in a single housing
• 200 selectable UHF channels per band and True Diversity reception for interference-resistant operation
• Works on frequencies 655.500 - 680.375 MHz (TV Channels 44 - 49)
• IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers
• On-board Ethernet interface for monitoring and controlling system parameters with included AEW Control Interface software (click to download)
• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
• Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
• 1/4" external mute switch jack allows user to mute the system quickly and easily
• AC pass-through allows daisy-chain AC hookup with included IEC jumper cables
• Link and coordinate multiple receiver channels
• High-visibility white-on-blue LCD information display
• Metal full-rack receiver chassis with reinforced mounting ears and rear rack mount capability
• All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power
• All components store up to five preset configurations, with customized "names" if desired

• Operating Frequencies: UHF Band D: 655.500 - 680.375 MHz
• Number of Channels: 200 total per band
• Frequency Stability: ±0.005%, Phase Lock Loop frequency control
• Modulation Mode: FM
• Normal Deviation: ±5 kHz
• Operating Range: 300' typical
• Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
• Frequency Response: 70 Hz to 15 kHz

• Receiving System: Dual independent RF sections, automatic-switching diversity
• Image Rejection: 60 dB typical
• Signal-to-noise Ratio: 115 dB at 40 kHz deviation (IEC-weighted), 75 kHz maximum modulation
• Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
• Sensitivity: 20 dBµV (S/N 70 dB at 5 kHz deviation, IEC-weighted)
• Intermediate Frequency: 65.75 MHz, 10.7 MHz
• Audio Output - Microphone: 25 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load), transformer isolated and balanced (ATTN switch at "0")
• Audio Output - Instrument: 50 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load), transformer isolated and balanced (ATTN switch at "0")
• Audio Output Attenuator (ATTN): Three-position switch: 0 / -6 / -12 dB
• Output Connectors (Microphone): XLRM-type, balanced
• Output Connectors (Instrument): 1/4" (6.3 mm) TRS balanced phone jack
• Headphone Output Connector: 1/4" (6.3 mm) TRS ("stereo") phone jack.
• Power Output: 10 mW + 10 mW into 32 ohms (at 1 kHz, ±5 kHz deviation); maximum output: 220 mW + 220 mW into 32 ohms. Headphones switchable between Channel 1 and Channel 2.
• External Mute: 1/4" (6.3 mm) TS unbalanced phone jack, each channel
• Antenna Power: DC 10V-12V, 20 mA (BNC-type jack)
• Computer Interface: Type: Ethernet, 10BaseT mode, Connector: RJ-45, Proprietary Software: supplied on CD-ROM
• Power Supply: 100-240V AC 50/60 Hz, 15W
• Pass-through AC Power Outlet: 100-240V AC 50/60 Hz, 5A maximum
Accessories Included: Detachable IEC-type AC power cable; two flexible UHF half-wave antennas; link cable; IEC-type AC pass-through cable; front-mount antenna cables and connectors; CD-ROM with computer control interface software; AEW-TB44 transmitter bag

• RF Power Output: High: 35 mW; Low: 10 mW, nominal
• Spurious Emissions: Under federal regulations
• Dynamic Range: >=110 dB, A-weighted
• Microphone Element: AEW-T5400: Cardioid Condenser
• Batteries: Two 1.5V AA alkaline (not included)
• Current Consumption: High: 185 mA; Low: 165 mA, typical
• Battery Life: Approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern
• Accessory Included: AT8456a Quiet-Flex™ stand clamp
