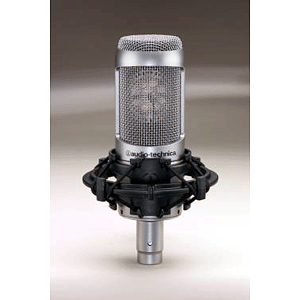

Audio-Technica 30 Series AT3060 Large-Diaphragm Cardioid Phantom-Powered Tube Microphone

A price/performance first in tube microphone technology, the AT3060 side-address tube mic delivers warm, classic tube sound.

Operating on 48V phantom power, it offers the convenience and easy setup of a studio condenser. The microphone contains a large diaphragm cardioid capsule, large coupling transformer, and a hand-selected, individually tested and aged tube. Its shock-mounted tube assembly dampens mechanically coupled vibrations.

Features:

• Warm classic tube sound
• No dedicated power supply or special cable needed; operates exclusively on 48V DC phantom power
• Large-diaphragm cardioid condenser element provides high sensitivity and smooth sound reproduction with low noise levels
• Hand-selected tubes are individually tested and aged to maintain peak performance
• Shock-mounted tube assembly dampens mechanically-coupled vibrations
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Large coupling transformer provides superior low-frequency linearity
• State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
• Includes AT8458 shock mount and protective pouch

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 50-16,000 Hz
• OPEN CIRCUIT SENSITIVITY: -32 dB (25.1 mV) re 1V at 1 Pa
• IMPEDANCE: 400 ohms
• MAXIMUM INPUT SOUND LEVEL: 134 dB SPL, 1 kHz at 1% T.H.D.
• NOISE: 17 dB SPL
• DYNAMIC RANGE (typical): 117 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 77 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 3 mA typical
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• INCLUDED ACCESSORIES: AT8458 shock mount for 5/8"-27 threaded stands; soft protective pouch
• AUDIO-TECHNICA CASE STYLE: R5
