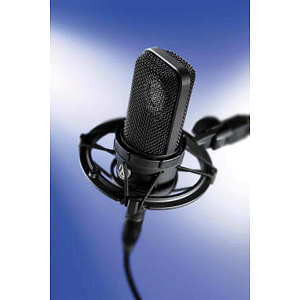

Audio-Technica 40 Series AT4040 Cardioid Studio Condenser Microphone

The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics.

A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040's low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.

Features:

• Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics
• Externally polarized (DC bias) true condenser design
• Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility
• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
• Custom shock mount provides superior isolation
• Switchable 80 Hz hi-pass filter and 10 dB pad

• ELEMENT: Externally-polarized (DC bias) condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 20-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: -32 dB (25.1 mV) re 1V at 1 Pa
• IMPEDANCE: 100 ohms
• MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• NOISE: 12 dB SPL
• DYNAMIC RANGE (typical): 133 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 82 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 4.2 mA typical
• SWITCHES: Flat, roll-off; 10 dB pad (nominal)
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• INCLUDED ACCESSORIES: AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
• AUDIO-TECHNICA CASE STYLE: R1
