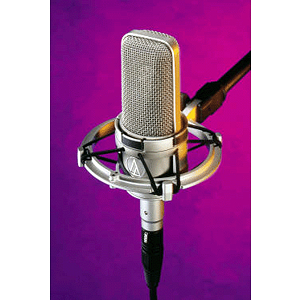

Audio-Technica 40 Series AT4047/SV Cardioid Studio Condenser Microphone

The rich, warm sound of Audio-Technica's AT4047/SV takes you back to the classic F.E.T. studio microphones, but there's nothing remotely old-fashioned about the technology behind that vintage sound.

The AT4047/SV studio condenser's dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.The AT4047/SV is another in a venerable line of studio artists' dreams come true: the 40 Series, from Audio-Technica.

Features:

• Designed for critical studio, live sound and broadcast applications
• Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
• Exceptionally low self-noise, wide dynamic range and high SPL capability
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Vintage silver-matte finish on microphone and shock mount
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
• Switchable 80 Hz hi-pass filter and 10 dB pad
• Custom shock mount provides superior isolation

• ELEMENT: Externally-polarized (DC bias) condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 20-18,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: -35 dB (17.7 mV) dB re 1V at 1 Pa
• IMPEDANCE: 250 ohms
• MAXIMUM INPUT SOUND LEVEL: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
• NOISE: 9 dB SPL
• DYNAMIC RANGE (typical): 140 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 85 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 3.0 mA typical
• SWITCHES: Flat, roll-off; 10 dB pad (nominal)
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• INCLUDED ACCESSORIES: AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
• AUDIO-TECHNICA CASE STYLE: R1
