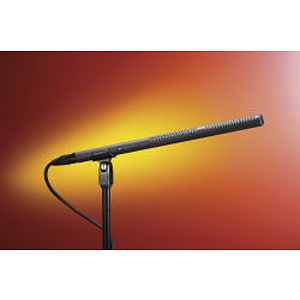

Audio-Technica AT8035 Line + Gradient Shotgun Microphone

The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses.

The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.

Features:

• Designed for video production and broadcast (ENG/EFP) audio acquisition
• Length is well-suited for ENG, outdoor recording and other specialized uses
• Provides the narrow acceptance angle desirable for long-distance sound pickup
• Excellent sound rejection from the sides and rear of mic
• Switchable low-frequency roll-off
• Operates on battery or phantom power
• RoHS compliant-free from all substances specified in the EU directive on hazardous substances

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Line + gradient
• FREQUENCY RESPONSE: 40-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa, Battery: -39 dB (11.2 mV) re 1V at 1 Pa
• IMPEDANCE: Phantom: 250 ohms, Battery: 300 ohms
• MAXIMUM INPUT SOUND LEVEL: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D., Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): Phantom: 110 dB, 1 kHz at Max SPL, Battery: 98 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
• BATTERY TYPE: 1.5V AA/UM3
• BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
• SWITCH: Flat, roll-off
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• INCLUDED ACCESSORIES: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8132 windscreen; battery; protective carrying case
• AUDIO-TECHNICA CASE STYLE: SG1
