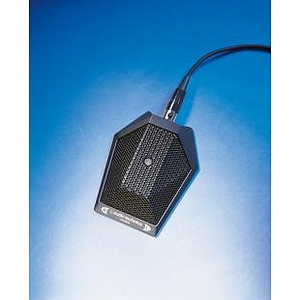

Audio-Technica AT849 Stereo Boundary Microphone

Designed for surface-mount use in high-quality sound reinforcement, broadcasting and recording applications, this robust microphone delivers clear and intelligible audio reproduction.

With true stereo output and twin XLR output connectors, the AT849 features closely matched, optimally positioned elements that deliver the spatial impact and realism of a live sound field. The microphone's heavy die-cast case and rubber bottom pad minimize coupling of surface vibration. The mic features switchable low-frequency roll-off and low-profile design for minimum visibility.

Features:

• Designed primarily for surface-mount applications in broadcast, professional recording and sound reinforcement
• Closely-matched optimally-positioned elements deliver the spatial impact and realism of a live sound field
• Heavy die-cast case and rubber bottom pad minimize coupling of surface vibration to the microphone
• Switchable low-frequency roll-off
• Low-profile design for minimum visibility
• 25' (7.6 m) detachable cable (TA5F to two 3-pin XLRM-type connectors)

• ELEMENTS: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: X/Y stereo
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 150 Hz, 6 dB/octave
• OPEN CIRCUIT SENSITIVITY: -40 dB (10.0 mV) re 1V at 1 Pa
• CHANNEL BALANCE: <=2.5 dB
• IMPEDANCE: 200 ohms balanced
• MAXIMUM INPUT SOUND LEVEL: 137 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 110 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 67 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 9-52V DC, 2 mA typical (each channel)
• SWITCH: Flat, roll-off
• OUTPUT CONNECTOR: Integral 5-pin TB5M
• CABLE: 25' (7.6 m) long, shielded, vinyl-jacketed, stereo cable with 5-pin TA5F connector at microphone end, two 3-pin XLRM-type connectors at output end
• INCLUDED ACCESSORIES: Soft protective pouch
