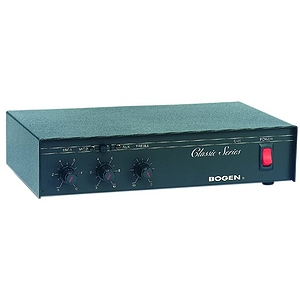

Bogen C20 Public Address Amplifier - 20 Watt

The Bogen Classic Series offers dependable performance and flexibility. All models are UL and CSA listed. Bogen's C20 is designed for reliable public address. Screw terminal connections are provided for 600Ω @ 1 volt and 8Ω at 1 watt. A level control is also provided on the rear panel. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.

Features:

• 20W output power
• Transformer isolated 4Ω, 8Ω, 16Ω, 25V and 70V output taps
• Rear panel auxiliary receptacle
• One dedicated MIC 1 input - Lo-Z balanced
• One switchable MIC 2/Aux 1 input
• Contact muting of Aux input
• Transformer-isolated 600Ω telephone paging input
• Separate rear panel-mounted TEL volume control
• Voice activated muting of Aux input by Tel input
• Variable trigger threshold for voice activation
• Optional wall mount kit
• Optional impedance matching transformer 10k/600Ω
• UL and CSA listed

Power Output: C20 - 20 WRMS

Distortion: Less than 1% @ RPO

Frequency Response: 70Hz to 16kHz ±1dB

Hum and Noise:
MIC - 55dB below rated output
AUX - 70dB below rated output
TEL - 70dB below rated output


Input Sensitivity:
MIC - Lo-Z Balanced 600iV
AUX - 85mV (10k-ohms)
TEL - 75mV (600Ω)


Outputs: 4-, 8-, 16 ohms, 25V, 70V

Output Connections: Screw terminal strip

Input Connections: Two MIC Lo-Z terminals, AUX Hi-Z jack, TEL terminals

Controls: MIC 1, MIC2/AUX (switch selected), Treble, TEL, VOX, Power

Tone Control: TREBLE, -11dB @ 10kHz (cut only)

Power Requirements: 120V AC, 60Hz, C20(MOH) - 50 watts

Dimensions: 11-3/8" W x 2-7/8" H x 7-3/8" D

Shipping Weight: 6 lbs.
