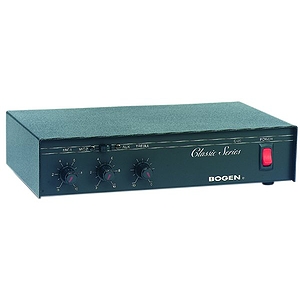

Bogen C20MOH Public Address Amplifier - 20 Watt
Rollover image for closeup

Bogen C20MOH Public Address Amplifier - 20 Watt

Item #: MP.C20MOH

Estimate the Delivery Date

Note: This item may NOT arrive before Christmas via standard Ground, 3-Day, or 2-Day shipping. To insure Christmas delivery, choose Next Day shipping before Mon 12/22 3PM EST.

List Price: $432.87
Our Price:
$265.59 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Bogen

Public Address Amplifier. Made by Bogen. (MP.C20MOH)

Free Shipping on this item, and most items in same order also ship free

In Stock
Usually ships within 1-2 business days

Found in:  PA Systems



The Bogen Classic Series offers dependable performance and flexibility. All models are UL and CSA listed. The MOH models provide a music-on-hold output from the Aux input source. This output is unaffected by paging. Screw terminal connections are provided for 600Ω @ 1 volt and 8Ω at 1 watt. A level control is also provided on the rear panel. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.

Features:

  • 20W output power
  • Transformer isolated 4Ω, 8Ω, 16Ω, 25V and 70V output taps
  • Rear panel auxiliary receptacle
  • One dedicated MIC 1 input - Lo-Z balanced
  • One switchable MIC 2/Aux 1 input
  • Contact muting of Aux input
  • Transformer-isolated 600Ω telephone paging input
  • Separate rear panel-mounted TEL volume control
  • Voice activated muting of Aux input by Tel input
  • Variable trigger threshold for voice activation
  • MOH models provide 1W @ 8Ω and 1V @ 600Ω outputs of Aux input (only for telephone music-on-hold inputs)
  • Optional wall mount kit
  • Optional impedance matching transformer 10k/600Ω
  • UL and CSA listed


Specifications:
    Power Output: C20(MOH) - 20 WRMS

    Distortion: Less than 1% @ RPO

    Frequency Response: 70Hz to 16kHz ±1dB

    Hum and Noise:
      MIC - 55dB below rated output
      AUX - 70dB below rated output
      TEL - 70dB below rated output


    Input Sensitivity:
      MIC - Lo-Z Balanced 600iV
      AUX - 85mV (10k-ohms)
      TEL - 75mV (600Ω)


    Outputs: 4-, 8-, 16 ohms, 25V, 70V

    MOH: Output 600Ω @ 1V or 8Ω @ 1W

    Output Connections: Screw terminal strip

    Input Connections: Two MIC Lo-Z terminals, AUX Hi-Z jack, TEL terminals

    Controls: MIC 1, MIC2/AUX (switch selected), Treble, TEL, VOX, Power

    Tone Control: TREBLE, -11dB @ 10kHz (cut only)

    Power Requirements: 120V AC, 60Hz, C20(MOH) - 38 watts

    Dimensions: 11-3/8" W x 2-7/8" H x 7-3/8" D

    Shipping Weight: 6 lbs.
