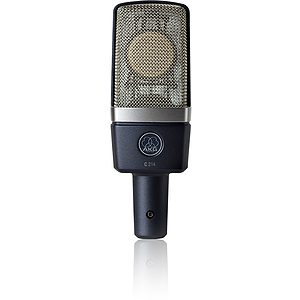

AKG C 214 Stage/Studio Condenser Microphone

AKG’s C 214 is a cost-effective alternative to the high-end, industry-leading C 414 family. It features rugged, roadworthy construction, an intergrated suspension, switchable attenuation pad and low cut, high RF immunity, and more. The C 214 is versitile: excellent for everything from screaming guitar cabs to subtle vocals. A spidertype shock mount and metal carrying case are included.

Features:

• AKG’s Legendary 1” Edge-Terminated Large Diaphragm Sound´
• Outstanding Dynamic Range (up to 156 dB SPL, Ultra-Low Noise)
• Roadworthy Design
• Integrated Suspension to reduce mechanical Noise
• Switchable 20 dB Attenuation Pad and Low Cut Switch
• Rugged double mesh Grill for high RF immunity but unaffected Acoustics
• All-metal Die-cast body with shock- and scratch-resistant Finish
• Spider-type Shock Mount included
• Metal Carrying Case included
• Designed, Engineered and Built in Vienna, Austria

The new C 214 is designed as a cost-effective alternative to the high-end, industry-leading C 414 family. It captures sound combining one side of the legendary C 414 dual-capsule system and AKG’s patented Back-Plate Technology which results in an outstanding performance close to the famous C 414 B-XLS.

Like the C 414 models, the C 214 is capable of handling the rigors of high-pressure sound such as amplified guitars, with a sensitivity perfect for voice and orchestral instruments as well. Additionally, the microphone offers a 20 dB Attenuation pad, 13 dB noise floor, and a low cut switch—all in an elegant but rugged package. Besides, the C 214 will also work on low phantom power voltages from 12 up to 48 volts.

Additional features include an integrated suspension, a double mesh grill high RF immunity without affecting acoustics. The circuitry in the C 214 provides maximum SPL capability with minimum noise and the gold-plated XLR-type output connector offers loss-free signals.

The C 214 comes complete with carrying case, windscreen, and spider suspension mount included.

Specifications:

• Polar pattern: Cardioid
• Frequency range: 20 to 20,000 Hz
• Sensitivity: 20 mV/Pa (-34 dBV)
• Max. SPL: 136/156 dB SPL (0/-20 dB) (for 0.5% THD)
• Equivalent noise level: 13 dB-A to IEC 60268-4 (A-weighted)
• Signal/noise ratio (A-weighted): 81 dB
• Preattenuation pad: 0/-20 dB (switchable)
• Bass cut filter slope: 160 Hz, 6 dB/Octave, switchable
• Impedance: <=200 ohms
• Recommended load impedance: >=1000 ohms
• Supply voltage: 12 to 52 V Phantom power to IEC 61938
• Powering: < 2 mA
• Dynamic range: 123/143 dB (0/-20 dB) (A-weighted)
• Connector: IEC standard 3-pin XLR
• Finish: matte grayish blue
• Dimensions: 160 x 55 mm (6.3 x 2.2 in.)
• Net weight: 280 g (0.62 lbs.)
• Shipping weight: 1450 g (3.22 lbs.)
• Patent(s): Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488)
