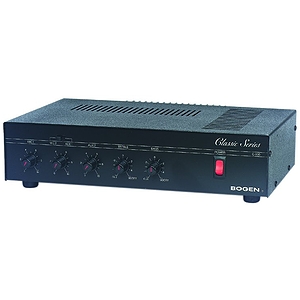

Bogen C35 Classic Series 4 Input Public Address Mixer/Amplifier - 35 Watt

Bogen's Classic Series mixer amplifiers allow mixing of microphone, telephone, and auxiliary sources. Screw terminals provide output to low impedance and transformer-coupled speakers. Each of the 4 inputs has its own volume control. Additional features include treble/bass control, aux muting, vox muting, and audio output.

Features:

• 3 models: 35 Watt / 60 Watt / 100 Watt
• 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
• Each input controlled by an independent volume control
• Treble and bass controls
• AUX muting by external contact closure for pushto-talk microphones
• TEL input for telephone paging applications
• TEL input voice-activated (VOX) mute over AUX input
• Variable threshold for TEL input voice-activated AUX mute
• Audio output for tape recorder or booster amplifier
• Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)
• Output jack to connect a tape recorder or booster amplifier
• Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
• Thermal protection and electronic shutdown
• Rack mountable with accessory mounting kit (model RPK50)
• UL and CSA listed

Power Output (RMS): 35 Watt

Frequency Response & Distortion:
Transformer 70 - 16 kHz (± 2 dB) @ 1% max
4-Ohm Direct Output 20 - 20 kHz (± 1 dB) @ 0.5% max


Hum and Noise:
MIC 55 dB below rated output
AUX 70 dB below rated output
TEL 70 dB below rated output


Input Sensitivity:
MIC Lo-Z Balanced 600iV
AUX 85mV
TEL 75mV


Outputs:
8 ohms, 16 ohms, 25V, 70V transformerisolated balanced or unbalanced
4 ohms direct unbalanced


Output Connections:
Screw terminal strip, TAPE/BOOSTER jack
WMT1A jack (requires accessory transformer)


Input Connections: Screw terminals for MIC and TEL, two AUX Hi-Z jacks

Controls: MIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX

Tone Control:
Treble, ±11 dB @ 10 kHz
Bass ±11 dB @ 100 Hz


Power Requirements: 120V AC, 60 Hz - 85W

Dimensions: 14-1/2" W x 3-3/4" H x 11" D

Shipping Weight: 16 lb
